2SC1102 - NPN Transistor

The 2SC1102 by INCHANGE is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

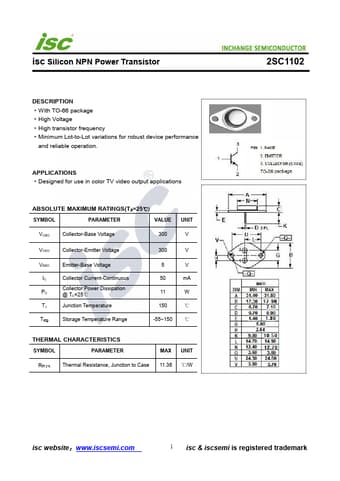

Official preview page of the 2SC1102 NPN Transistor datasheet (INCHANGE).

Datasheet Details

Part number 2SC1102
Manufacturer INCHANGE
File Size 176.91 KB
Description NPN Transistor
Datasheet download datasheet 2SC1102-INCHANGE.pdf
Additional preview pages of the 2SC1102 datasheet.

2SC1102 Product details

Description

With TO-66 package High Voltage High transistor frequency Minimum Lot-to-Lot variations for robust device performance and reliable operation.APPLICATIONS Designed for use in color TV video output applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 300 V VCEO Collector-Emitter Voltage 300 V VEBO IC PC TJ Tstg Emitter-Base Voltage Collector Current-Continuous Collector Power Dissipation @ TC=25℃ Junction Te
