IN74VHC241 - Octal Buffer/Line Driver

IK Semiconductor

📥 Download Datasheet

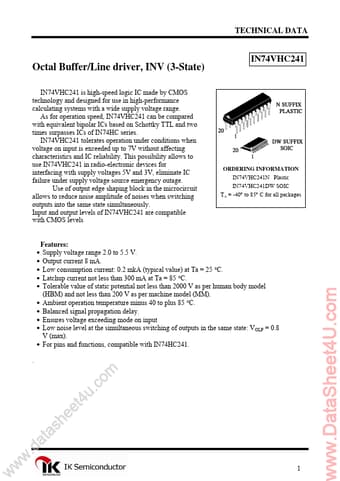

IN74VHC241 Datasheet Preview — Preview of IN74VHC241 PDF

Datasheet Details

Part number	IN74VHC241
Manufacturer	IK Semiconductor
File Size	283.00 KB
Description	Octal Buffer/Line Driver
Datasheet	IN74VHC241_IKSemiconductor.pdf

IN74VHC241 Product details

Description

in IN74VHC241 Pinout Pin No.01 20 19 18 17 16 15 14 13 12 11 Symbol 1G 1A1 2Y4 1A2 2Y3 1A3 2Y2 1A4 2Y1 GND 2A1 1Y4 2A2 1Y3 2A3 1Y2 2A4 Description Input OUTPUT ENABLE Data input Data output Data input Data output Data input Data output Data input Data output Common output Data input Data output Data input Data output Data input Data output Data input 1G 1A1 2Y4 1A2 2Y3 1A3 2Y2 1A4 2Y1 GND 01 02 03 04 05 06 07 08 09 10 VCC 2G 1Y1 2A4 1Y2 2A3 1Y3 2A2 1Y4 2A1 02 03 04 05 06 07 08 09 10 11 1

Features

Supply voltage range 2.0 to 5.5 V. Output current 8 mA. Low consumption current: 0.2 mkA (typical value) at Та = 25 °С. Latchup current not less than 300 mA at Та = 85 °С. Tolerable value of static potential not less than 2000 V as per human body model (HBM) and not less than 200 V as per machine model (ММ).
Ambient operation temperature minus 40 to plus 85 °С.
Balanced signal propagation delay.
Ensures voltage exceeding mode on input.
Low noise level at t.
