IN74VHC08 - Hex Inverter

IK Semiconductor

📥 Download Datasheet

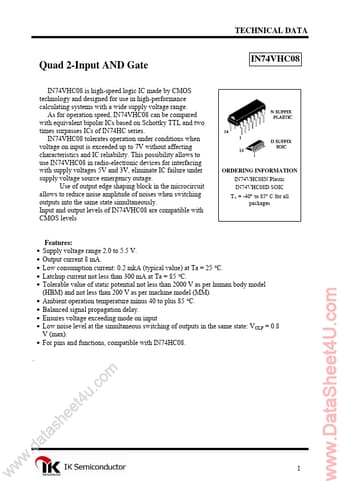

IN74VHC08 Datasheet Preview — Preview of IN74VHC08 PDF

Datasheet Details

Part number	IN74VHC08
Manufacturer	IK Semiconductor
File Size	253.86 KB
Description	Hex Inverter
Datasheet	IN74VHC08_IKSemiconductor.pdf

IN74VHC08 Product details

Description

in IN74VHC08 Pin No.01 02 03 04 05 06 07 08 09 10 11 12 13 14 Symbol А1 В1 Y1 А2 В2 Y2 GND Y3 А3 В3 Y4 А4 В4 VCC Description Input Input Output Input Input Output Common output Output Input Input Output Input Input Supply output from voltage source 2 IN74VHC08 Absolute maximum conditions Parameter, unit Symbol min -0.5 -0.5 -0.5 Value max 7.0 7.0 Vcc+0.5V -20 ± 50 Supply voltage, V VCC Input voltage, V Vin Vout Output voltage, V Input diode current, mA Iik Current o

Features

Supply voltage range 2.0 to 5.5 V. Output current 8 mA. Low consumption current: 0.2 mkA (typical value) at Та = 25 °С. Latchup current not less than 300 mA at Та = 85 °С. Tolerable value of static potential not less than 2000 V as per human body model (HBM) and not less than 200 V as per machine model (ММ). Ambient operation temperature minus 40 to plus 85 °С. Balanced signal propagation delay. Ensures voltage exceeding mode on input Low noise level at the simultaneous switching of outputs in t.
