IN74VHC240 - Octal Buffer/Line Driver

IK Semiconductor

📥 Download Datasheet

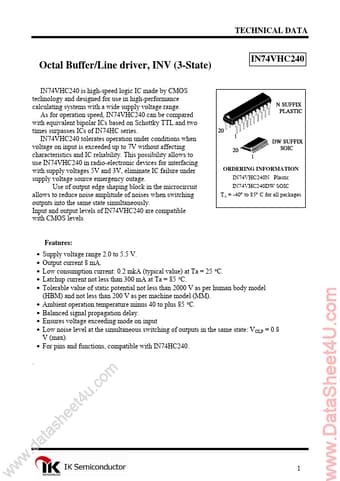

IN74VHC240 Datasheet Preview — Preview of IN74VHC240 PDF

Datasheet Details

Part number	IN74VHC240
Manufacturer	IK Semiconductor
File Size	281.00 KB
Description	Octal Buffer/Line Driver
Datasheet	IN74VHC240_IKSemiconductor.pdf

IN74VHC240 Product details

Description

in IN74VHC240 Pinout Pin No.01 20 19 18 17 16 15 14 13 12 11 Symbol 1G 1A1 Description Output enable input Data input Inverse data output Data input Inverse data output Data input Inverse data output Data input Inverse data output Common output Data input Inverse data output Data input Inverse data output Data input Inverse data output Data input Inverse data output Output enable input Supply output from voltage source 1G 1A1 2Y4 1A2 2Y3 1A3 2Y2 1A4 2Y1 GND 01 02 03 04 05 06 07 08 09 10 V

Features

. Supply voltage range 2.0 to 5.5 V. Output current 8 mA. Low consumption current: 0.2 mkA (typical value) at Та = 25 °С. Latchup current not less than 300 mA at Та = 85 °С. Tolerable value of static potential not less than 2000 V as per human body model (HBM) and not less than 200 V as per machine model (ММ). Ambient operation temperature minus 40 to plus 85 °С. Balanced signal propagation delay.
