HD74LV165A - Parallel-Load 8-bit Shift Register

General Description

The HD74LV165A is 8-bit serial shift register shifts data from QA to QH when clocked.

Parallel inputs to each stage are enabled by a low level at the Shift/Load input.

Also included is a gated clock input and a complementary output from the eighth bit.

Key Features

  • VCC = 2.0 V to 5.5 V operation All inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max. ) = 5.5 V (@VCC = 0 V) Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C) Typical VOH undershoot > 2.3 V (@VCC = 3.3 V, Ta = 25°C) Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V) HD74LV165A Function Table Inputs SH/LD L H H H H H H CLK INH X L L H X ↑ ↑ CLK X ↑ ↑ X H L L SER X H L X X H L A H a.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HD74LV161A Synchronous 4-bit Binary Counter Renesas
HD74LV163A Synchronous 4-bit Binary Counter Renesas
HD74LV166A Parallel-Load 8-bit Shift Register Renesas
HD74LV10A Triple 3-input Positive NAND Gates Renesas
HD74LV11A Triple 3-input Positive AND Gates Renesas

Other Datasheets by Hitachi Semiconductor (now Renesas)

Part Number Description
HD74LV161A Synchronous 4-bit Binary Counter (Direct Clear)
HD74LV163A Synchronous 4-bit Binary Counter (Synchronous Clear)
HD74LV164A 8-bit Parallel-out Serial-in Shift Register
HD74LV166A Parallel-Load 8-bit Shift Register
HD74LV10A Triple 3-input Positive NAND Gates

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

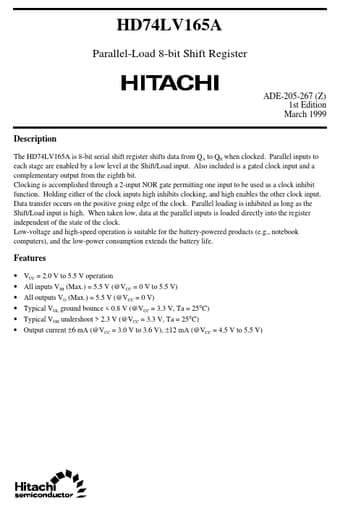

HD74LV165A Parallel-Load 8-bit Shift Register ADE-205-267 (Z) 1st Edition March 1999 Description The HD74LV165A is 8-bit serial shift register shifts data from QA to QH when clocked. Parallel inputs to each stage are enabled by a low level at the Shift/Load input. Also included is a gated clock input and a complementary output from the eighth bit. Clocking is accomplished through a 2-input NOR gate permitting one input to be used as a clock inhibit function. Holding either of the clock inputs high inhibits clocking, and high enables the other clock input. Data transfer occurs on the positive going edge of the clock. Parallel loading is inhibited as long as the Shift/Load input is high.
