HD74LV164A, HD74LV164A8 Datasheet - Hitachi Semiconductor

HD74LV164A 8-bit Parallel-out Serial-in Shift Register

The HD74LV164A is 8-bit shift register has gated serial inputs and clear. Each register bit is a D-type master/slave flip-flop. Inputs A & B permit complete control over the incoming data. A low at either or both inputs inhibits entry of new data and resets the first flip-flop to the low level at th.

HD74LV164A8_HitachiSemiconductor.pdf

This datasheet PDF includes multiple part numbers: HD74LV164A, HD74LV164A8. Please refer to the document for exact specifications by model.

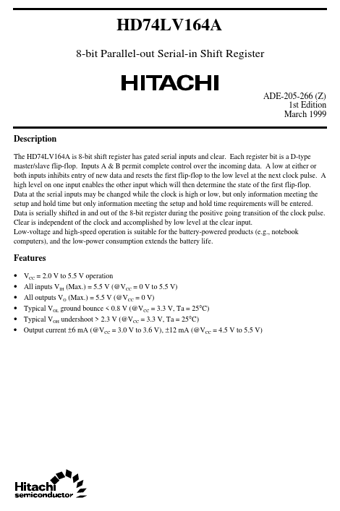

HD74LV164A Datasheet Preview Page 2 HD74LV164A Datasheet Preview Page 3

Datasheet Details

Part number:

HD74LV164A, HD74LV164A8

Manufacturer:

Hitachi Semiconductor

File Size:

68.17 KB

Description:

8-bit parallel-out serial-in shift register.

Note:

This datasheet PDF includes multiple part numbers: HD74LV164A, HD74LV164A8.
Please refer to the document for exact specifications by model.
