HD74LV125A Quad. Bus Buffer Gates

HD74LV125A Description

HD74LV125A Quad.Bus Buffer Gates with 3-state Outputs REJ03D0315 *0300Z (Previous ADE-205-245A (Z)) Rev.3.00 Jun.03, 2004 .
The HD74LV125A features independent line drivers with three state outputs.

HD74LV125A Features

* independent line drivers with three state outputs. Each output is disabled when the associated output enable (OE) input is high. To ensure the high impedance state during power up or power down, OE should be connected to VCC through a pull-down resistor; the minimum value of the resistor is determin

📥 Download Datasheet

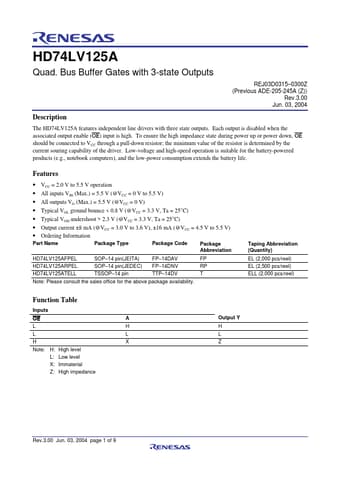

Preview of HD74LV125A PDF
