HD74LV126A Quad. Bus Buffer Gates

HD74LV126A Description

HD74LV126A Quad.Bus Buffer Gates with 3-state Outputs REJ03D0316 *0300Z (Previous ADE-205-259A (Z)) Rev.3.00 Jun.03, 2004 .
The HD74LV126A features independent line drivers with three state outputs.

HD74LV126A Features

* independent line drivers with three state outputs. Each output is disabled when the associated output enable (OE) input is low. To ensure the high impedance state during power up or power down, OE should be connected to GND through a pull-down resistor; the minimum value of the resistor is determine

📥 Download Datasheet

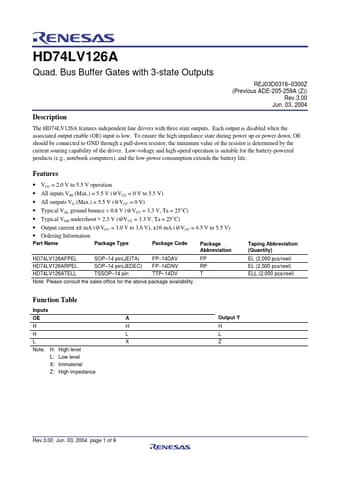

Preview of HD74LV126A PDF
