H1N5818, H1N5818_Hi - 1.0AMP.SCHOTTKY BARRIER RECTIFIERS

Name: H1N5818
SKU: H1N5818-55272

Hi-Sincerity Mocroelectronics

The H1N5818 by Hi-Sincerity Mocroelectronics is a 1.0AMP.SCHOTTKY BARRIER RECTIFIERS. Below is the official datasheet preview.

Datasheet Details

Part number	H1N5818, H1N5818_Hi
Manufacturer	Hi-Sincerity Mocroelectronics
File Size	38.48 KB
Description	1.0AMP.SCHOTTKY BARRIER RECTIFIERS
Datasheet	H1N5818_Hi-SincerityMocroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: H1N5818, H1N5818_Hi. Please refer to the document for exact specifications by model.

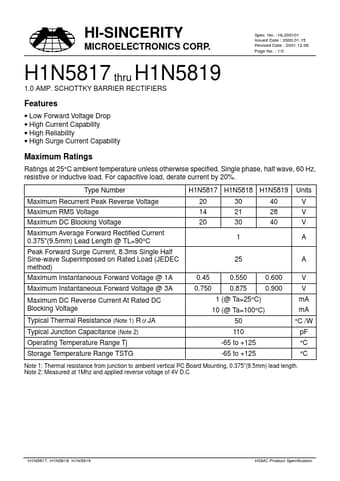

Additional preview pages of the H1N5818 datasheet.

Low Forward Voltage Drop.
High Current Capability.
High Reliability.
High Surge Current Capability Maximum Ratings Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. Type Number Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current 0.375"(9.5mm) Lead Length @ TL=90°C P.
