H1N4001, H1N4001_Hi - General Purpose Rectifiers

Name: H1N4001
SKU: H1N4001-55267

Hi-Sincerity Mocroelectronics

The H1N4001 by Hi-Sincerity Mocroelectronics is a General Purpose Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	H1N4001, H1N4001_Hi
Manufacturer	Hi-Sincerity Mocroelectronics
File Size	17.28 KB
Description	General Purpose Rectifiers
Datasheet	H1N4001_Hi-SincerityMocroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: H1N4001, H1N4001_Hi. Please refer to the document for exact specifications by model.

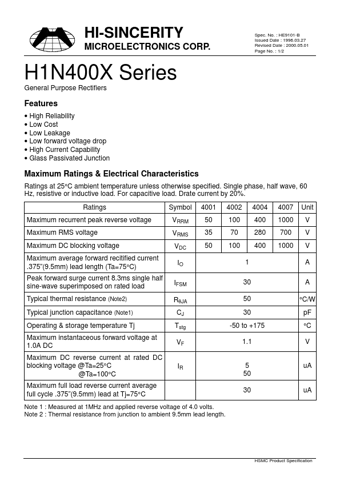

Additional preview pages of the H1N4001 datasheet.

High Reliability.
Low Cost.
Low Leakage.
Low forward voltage drop.
High Current Capability.
Glass Passivated Junction Maximum Ratings & Electrical Characteristics Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load. Drate current by 20%. Ratings Symbol 4001 4002 4004 4007 Unit Maximum recurrent peak reverse voltage VRRM 50 100 400 1000 V Maximu.
