H1N5819 - 1.0AMP.SCHOTTKY BARRIER RECTIFIERS

Download the H1N5819 datasheet PDF. This datasheet also covers the H1N5819_Hi variant, as both devices belong to the same 1.0amp.schottky barrier rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Low Forward Voltage Drop.
  • High Current Capability.
  • High Reliability.
  • High Surge Current Capability Maximum Ratings Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. Type Number Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current 0.375"(9.5mm) Lead Length @ TL=90°C P.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (H1N5819_Hi-SincerityMocroelectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number H1N5819
Manufacturer Hi-Sincerity Mocroelectronics
File Size 38.48 KB
Description 1.0AMP.SCHOTTKY BARRIER RECTIFIERS
Datasheet download datasheet H1N5819 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
H1N60D N-Channel MOSFET HAOHAI
H1N60U N-Channel MOSFET HAOHAI

Other Datasheets by Hi-Sincerity Mocroelectronics

Part Number Description
H1N5817 1.0AMP.SCHOTTKY BARRIER RECTIFIERS
H1N5818 1.0AMP.SCHOTTKY BARRIER RECTIFIERS
H1N5820 PNP EPITAXIAL PLANAR TRANSISTOR
H1N4001 General Purpose Rectifiers
H1N4002 General Purpose Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

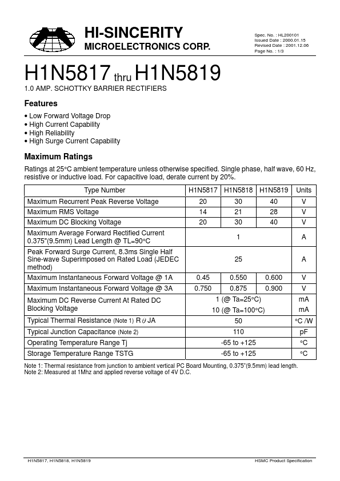

HI-SINCERITY MICROELECTRONICS CORP. Spec. No. : HL200101 Issued Date : 2000.01.15 Revised Date : 2001.12.06 Page No. : 1/3 H1N5817 thru H1N5819 1.0 AMP. SCHOTTKY BARRIER RECTIFIERS Features • Low Forward Voltage Drop • High Current Capability • High Reliability • High Surge Current Capability Maximum Ratings Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. Type Number Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current 0.375"(9.5mm) Lead Length @ TL=90°C Peak Forward Surge Current, 8.
