UTC1379 - 1-Chip Deffection System

Hangzhou Silan Microelectronics

📥 Download Datasheet

UTC1379 Datasheet Preview — Preview of UTC1379 PDF

Datasheet Details

Part number	UTC1379
Manufacturer	Hangzhou Silan Microelectronics
File Size	134.12 KB
Description	1-Chip Deffection System
Datasheet	UTC1379_HangzhouSilanMicroelectronics.pdf

UTC1379 Product details

Description

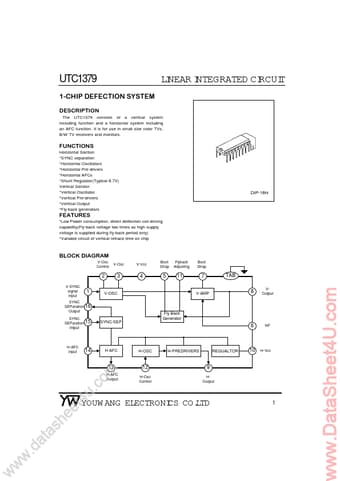

LI NEAR I NTEGRATED CI RCUI T The UTC1379 consists of a vertical system including function and a horizontal system including an AFC function.It is for use in small size color TVs, B/W TV receivers and monitors.FUNCTIONS Horizontal Section SYNC separation Horizontal Oscillators Horizontal Pre-drivers Horizontal AFCs Shunt Regulator(Typical 6.7V) Vertical Section Vertical Oscillator Vertical Pre-drivers Vertical Output Fly-back generators DIP-16H

Features

Low Power consumption, direct deflection coil driving capability(Fly-back voltage two times as high supply voltage is supplied during fly-back period only).
Variable circuit of vertical retrace time on chip BLOCK.
