UTC1018 - FM IF SYSTEM

YOUWANG

📥 Download Datasheet

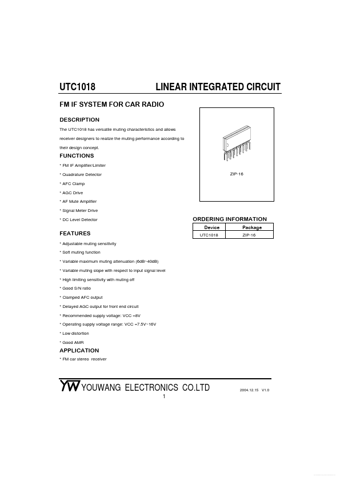

UTC1018 Datasheet Preview — Preview of UTC1018 PDF

Datasheet Details

Part number	UTC1018
Manufacturer	YOUWANG
File Size	170.34 KB
Description	FM IF SYSTEM
Datasheet	UTC1018-YOUWANG.pdf

UTC1018 Product details

Description

LINEAR INTEGRATED CIRCUIT FM IF SYSTEM FOR CAR RADIO The UTC1018 has versatile muting characteristics and allows receiver designers to realize the muting performance according to their design concept.FUNCTIONS FM IF Amplifier/Limiter Quadrature Detector AFC Clamp AGC Drive AF Mute Amplifier Signal Meter Drive DC Level Detector ZIP-16 ORDERING INFORMATION Device Package ZIP-16 UTC1018

Features

Adjustable muting sensitivity.
Soft muting function.
Variable maximum muting attenuation (6dB~40dB).
Variable muting slope with respect to input signal level.
High limiting sensitivity with muting off.
Good S/N ratio.
Clamped AFC output.
Delayed AGC output for front end circuit.
Recommended supply voltage: VCC =8V.
Operating supply voltage range: VCC =7.5V~16V.
Low distortion.
Good AMR.
