UTC1240A - Electronic Dual Tone Ringer

Hangzhou Silan Microelectronics

📥 Download Datasheet

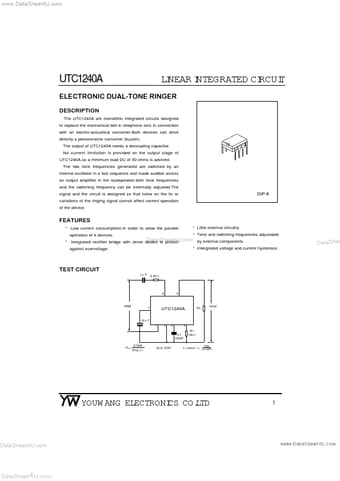

UTC1240A Datasheet Preview — Preview of UTC1240A PDF

Datasheet Details

Part number	UTC1240A
Manufacturer	Hangzhou Silan Microelectronics
File Size	225.81 KB
Description	Electronic Dual Tone Ringer
Datasheet	UTC1240A_HangzhouSilanMicroelectronics.pdf

UTC1240A Product details

Description

LI NEAR I NTEGRATED CI RCUI T ELECTRONIC DUAL-TONE RINGER The UTC1240A are monolithic integrated circuits designed to replace the mechanical bell in telephone sets in connection with an electro-acoustical converter.Both devices can drive directly a piezoceramic converter (buzzer).The output of UTC1240A needs a decoupling capacitor.No current limitation is provided on the output stage of UTC1240A,so a minimum load DC of 50 ohms is adviced.The two tone frequencies generated are switched by an

Features

Low current consumptioin,in order to allow the parallel operation of 4 devices. against overvoltage.
Little external circuitry.
Tone and switching frequencies adjustable.
Intergrated voltage and current hysteresis DataSheet4U. com by external components.
Integrated rectifier bridge with zener diodes to protect DataShee TEST.
