UTC1316 - Dual Channel Audio Power Amplifier

Hangzhou Silan Microelectronics

📥 Download Datasheet

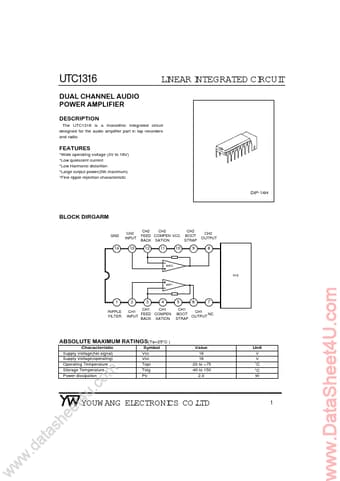

UTC1316 Datasheet Preview — Preview of UTC1316 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	UTC1316
Manufacturer	Hangzhou Silan Microelectronics
File Size	130.51 KB
Description	Dual Channel Audio Power Amplifier
Datasheet	UTC1316_HangzhouSilanMicroelectronics.pdf

UTC1316 Product details

Description

LI NEAR I NTEGRATED CI RCUI T The UTC1316 is a monolithic integrated circuit designed for the audio amplifier part in tap recorders and radio.

Features

Wide operating voltage (3V to 16V).
Low quiescent current.
Low Harmonic distortion.
Large output power(2W,maximum).
Fine ripple rejection characteristic DIP-14H BLOCK.
