UTC1366 - Video IF Processor for B/W TVs

Hangzhou Silan Microelectronics

📥 Download Datasheet

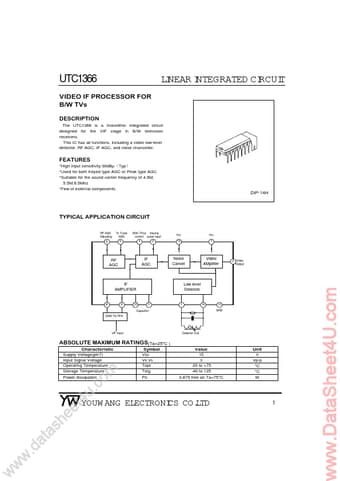

UTC1366 Datasheet Preview — Preview of UTC1366 PDF

Datasheet Details

Part number	UTC1366
Manufacturer	Hangzhou Silan Microelectronics
File Size	150.69 KB
Description	Video IF Processor for B/W TVs
Datasheet	UTC1366_HangzhouSilanMicroelectronics.pdf

UTC1366 Product details

Description

LI NEAR I NTEGRATED CI RCUI T The UTC1366 is a monolithic integrated circuit designed for the VIF stage in B/W television receivers.This IC has all functions, including a video low-level detector, RF AGC, IF AGC, and noise chancellor.

Features

High input sensitivity:30dBµ Typ.
Used for both Keyed type AGC or Peak type AGC.
Suitable for the sound carrier frequency of 4.5M, 5.5M,6.5Mhz.
Few of external components. DIP-14H.
