HYG012N03LR1C2 - N-Channel Enhancement Mode MOSFET

Datasheet Summary

Description

DDDD DDDD SSSG GSSS PDFN8L(5x6) Applications Load Switch Battery Protection Ordering and Marking Information Single N-Channel MOSFET C2 G012N03 XYMXXXXXX Package Code C2: PDFN8L(5x6) Date Code XYMXXXXXX Note: HUAYI lead-free products contain molding compounds/die attach materi

📥 Download Datasheet

Datasheet preview – HYG012N03LR1C2

Datasheet Details

Part number HYG012N03LR1C2
Manufacturer HUAYI
File Size 1.35 MB
Description N-Channel Enhancement Mode MOSFET
Datasheet download datasheet HYG012N03LR1C2 Datasheet
Additional preview pages of the HYG012N03LR1C2 datasheet.

📁 Similar Datasheet

Other Datasheets by HUAYI

Full PDF Text Transcription

Click to expand full text

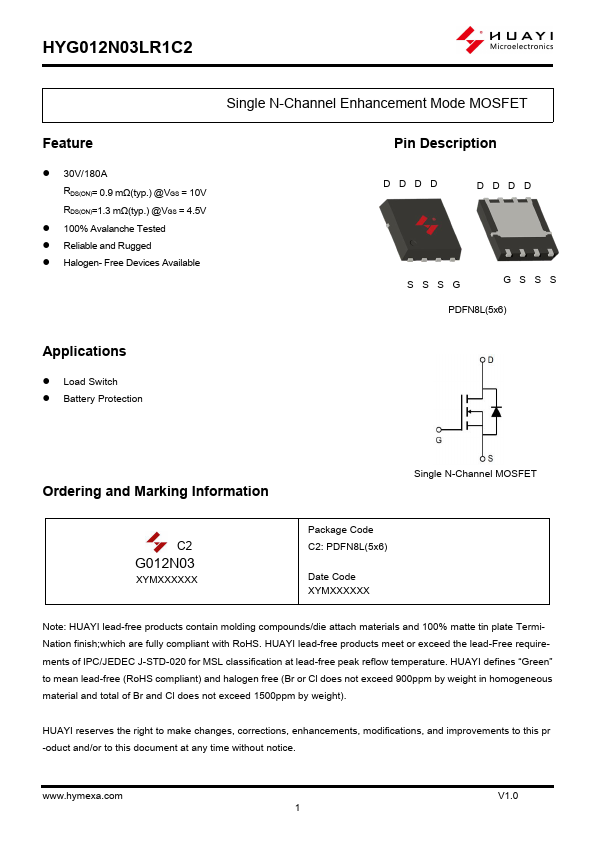

HYG012N03LR1C2 Single N-Channel Enhancement Mode MOSFET Feature  30V/180A RDS(ON)= 0.9 mΩ(typ.) @VGS = 10V RDS(ON)=1.3 mΩ(typ.) @VGS = 4.5V  100% Avalanche Tested  Reliable and Rugged  Halogen- Free Devices Available Pin Description DDDD DDDD SSSG GSSS PDFN8L(5x6) Applications  Load Switch  Battery Protection Ordering and Marking Information Single N-Channel MOSFET C2 G012N03 XYMXXXXXX Package Code C2: PDFN8L(5x6) Date Code XYMXXXXXX Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plate TermiNation finish;which are fully compliant with RoHS. HUAYI lead-free products meet or exceed the lead-Free requirements of IPC/JEDEC J-STD-020 for MSL classification at lead-free peak reflow temperature.
