Datasheet Details
| Part number | HYG017N04LS1C2 |
|---|---|
| Manufacturer | HOOYI |
| File Size | 626.86 KB |
| Description | N-Channel Enhancement Mode MOSFET |
| Datasheet |
 HYG017N04LS1C2-HOOYI.pdf
|
| Part number | HYG017N04LS1C2 |
|---|---|
| Manufacturer | HOOYI |
| File Size | 626.86 KB |
| Description | N-Channel Enhancement Mode MOSFET |
| Datasheet |
HYG017N04LS1C2-HOOYI.pdf
|

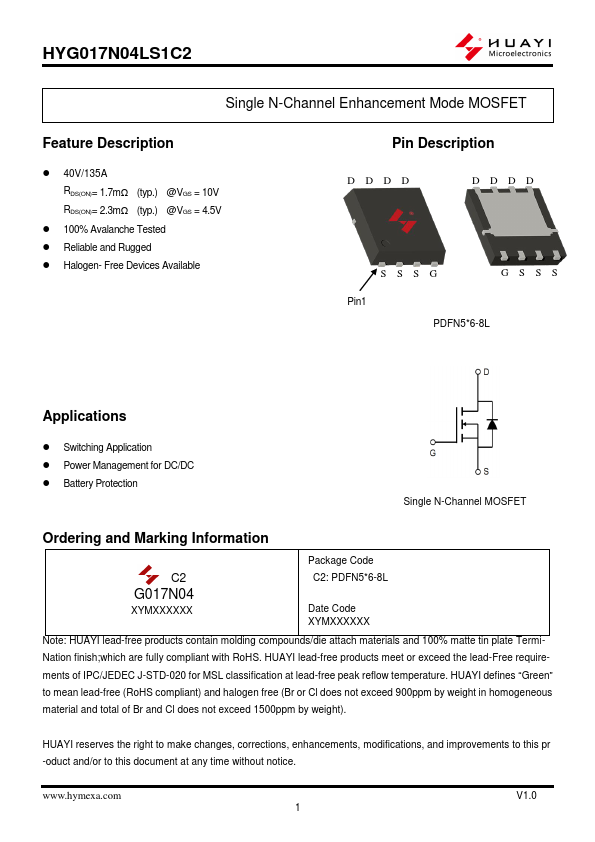

40V/135A RDS(ON)= 1.7mΩ (typ.) @VGS = 10V RDS(ON)= 2.3mΩ (typ.) @VGS = 4.5V 100% Avalanche Tested Reliable and Rugged Halogen- Free Devices Available Pin Description DDDD DDDD SSSG GSSS Pin1 PDFN5 6-8L Applications Switching Application Power Management for DC/DC Battery Protection Single N-Channel MOSFET Ordering and Marking Information C2 G017N04 XYMXXXXXX Package Code C2: PDFN5 6-8L Date Code XYMXXXXXX Note: HUAYI lead-free product
