HYG016N04LS1P N-Channel Enhancement Mode MOSFET

HOOYI

HYG016N04LS1P Description

HYG016N04LS1P/B N-Channel Enhancement Mode MOSFET .
TO-220FB-3L TO-263-2L Ordering and Marking Information N-Channel MOSFET P G016N04 XYMXXXXXX B G016N04 XYMXXXXXX Package Code P :TO-220FB-3L Dat.

HYG016N04LS1P Applications

* Power Management for DC/DC
* Battery management

📥 Download Datasheet

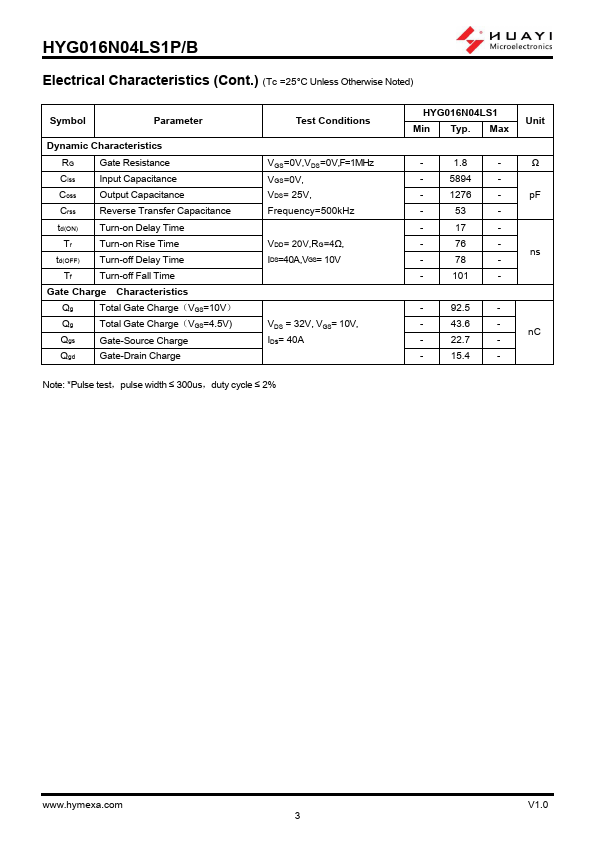

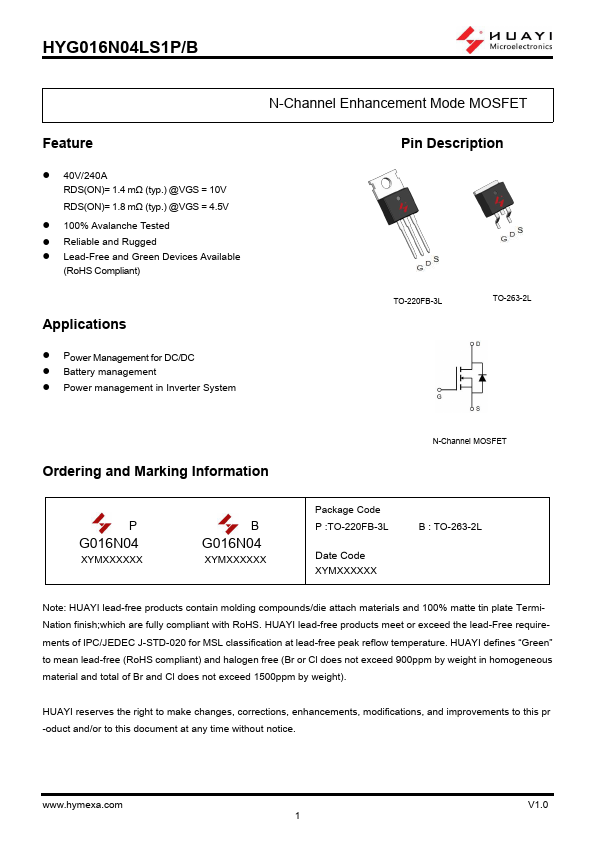

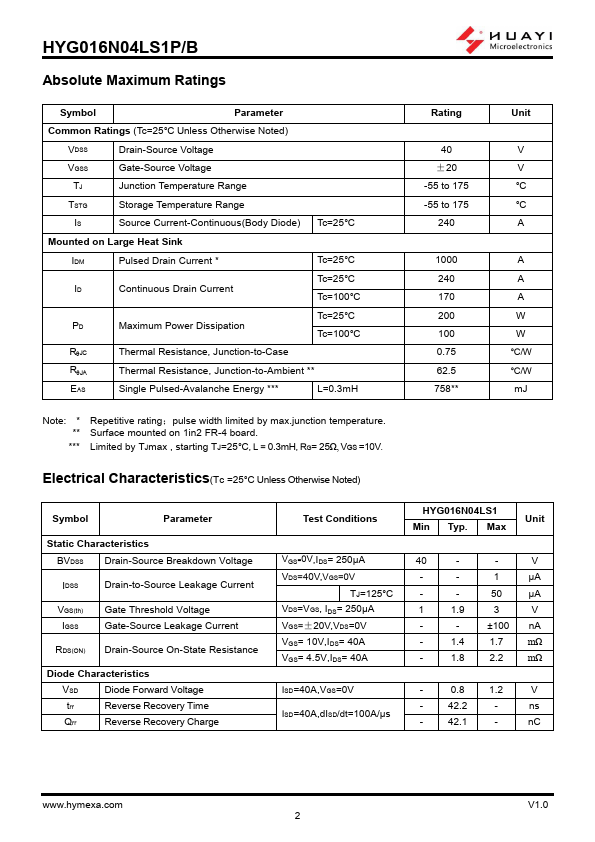

HYG016N04LS1P Datasheet Preview — Preview of HYG016N04LS1P PDF

Datasheet Details

Part number: HYG016N04LS1P
Manufacturer: HOOYI
File Size: 1.31 MB
Datasheet: HYG016N04LS1P-HOOYI.pdf
Description: N-Channel Enhancement Mode MOSFET
