HMS4260 N-Channel Super Trench Power MOSFET

H&M Semiconductor

HMS4260 Description

HMS4260 N-Channel Super Trench Power MOSFET .
The HMS4260 uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance.

HMS4260 Features

* VDS =60V,ID =20A RDS(ON)=4.0mΩ (typical) @ VGS=10V RDS(ON)=4.6mΩ (typical) @ VGS=4.5V
* Excellent gate charge x RDS(on) product(FOM)
* Very low on-resistance RDS(on)
* 150 °C operating temperature
* Pb-free lead plating
* 100% UIS tested Schematic diagram HMS4260 Marking a

📥 Download Datasheet

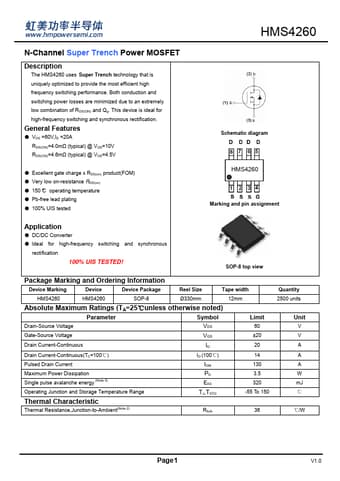

HMS4260 Datasheet Preview — Preview of HMS4260 PDF

Datasheet Details

Part number: HMS4260
Manufacturer: H&M Semiconductor
File Size: 446.77 KB
Datasheet: HMS4260-HMSemiconductor.pdf
Description: N-Channel Super Trench Power MOSFET
