HMS40N10KA

The HMS40N10KA is N-Channel Super Trench Power MOSFET designed by H&M Semiconductor.

Product Overview

H&M Semiconductor

📥 Download Datasheet

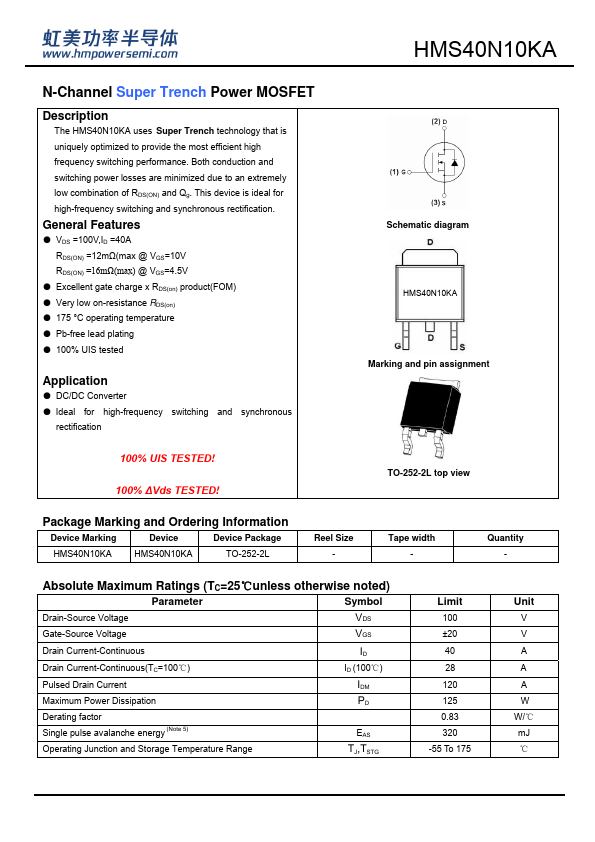

HMS40N10KA N-Channel Super Trench Power MOSFET by H&M Semiconductor - Datasheet Preview — Datasheet preview – HMS40N10KA

Datasheet Details

Part number	HMS40N10KA
Manufacturer	H&M Semiconductor
File Size	807.25 KB
Description	N-Channel Super Trench Power MOSFET
Datasheet	HMS40N10KA-HMSemiconductor.pdf

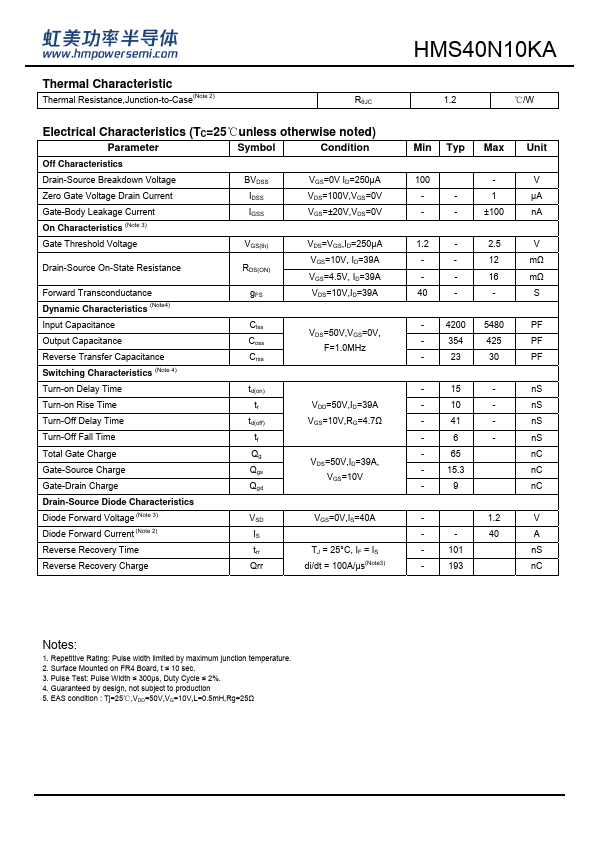

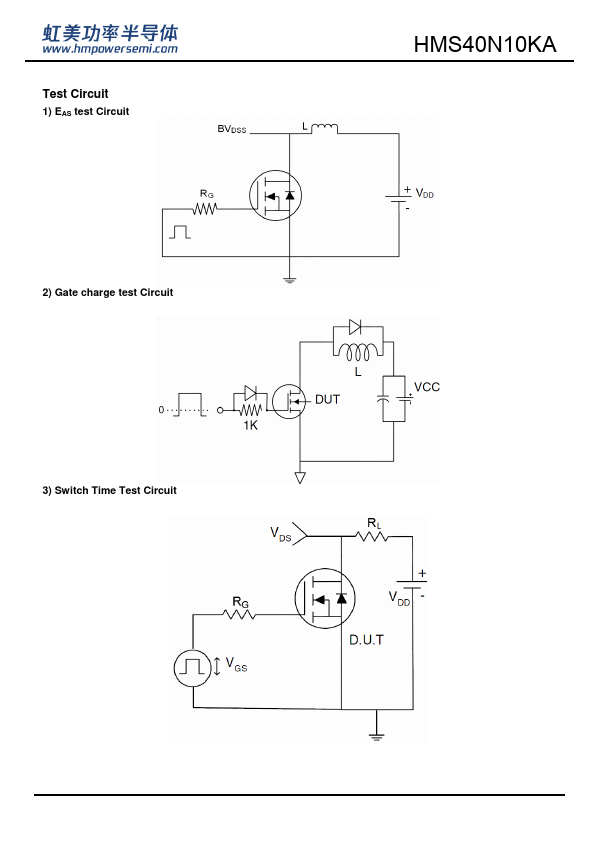

Additional preview pages of the HMS40N10KA datasheet.

Product details

Description

The HMS40N10KA uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance.

Features

VDS =100V,ID =40A RDS(ON) =12mΩ(max @ VGS=10V RDS(ON) =16mΩ(max) @ VGS=4.5V.
Excellent gate charge x RDS(on) product(FOM).
Very low on-resistance RDS(on).
175 °C operating temperature.
Pb-free lead plating.
100% UIS tested.
