Description

HMS40N10D N-Channel Super Trench Power MOSFET .
The HMS40N10D uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance.

📥 Download Datasheet

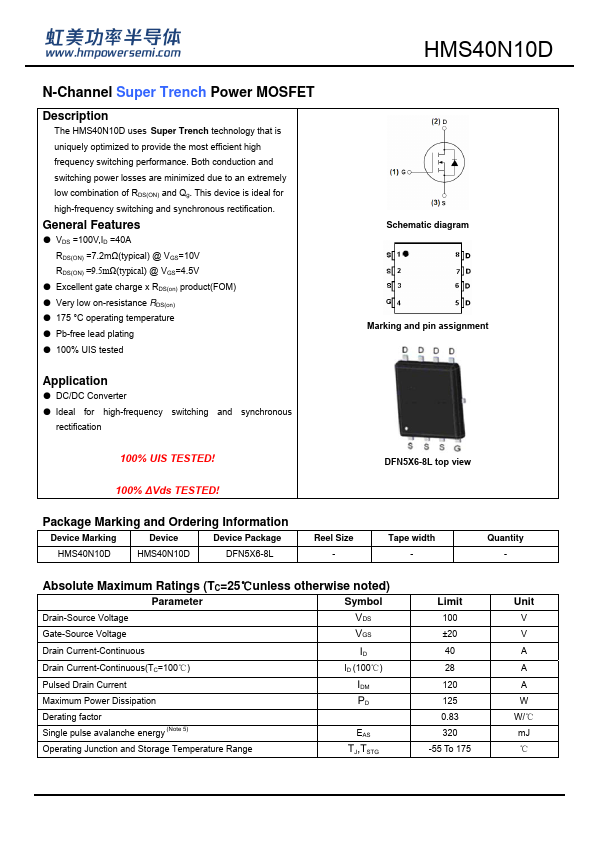

HMS40N10D Datasheet Preview — Preview of HMS40N10D PDF

Datasheet Specifications

Part number: HMS40N10D
Manufacturer: H&M Semiconductor
File Size: 586.38 KB
Datasheet: HMS40N10D-HMSemiconductor.pdf
Description: N-Channel Super Trench Power MOSFET

Features

* VDS =100V,ID =40A RDS(ON) =7.2mΩ(typical) @ VGS=10V RDS(ON) =9.5mΩ(typical) @ VGS=4.5V
* Excellent gate charge x RDS(on) product(FOM)
* Very low on-resistance RDS(on)
* 175 °C operating temperature
* Pb-free lead plating
* 100% UIS tested Schematic diagram Marking and pin
