HMS3N70 - 700V N-Channel Super Junction MOSFET

H&M Semiconductor

📥 Download Datasheet

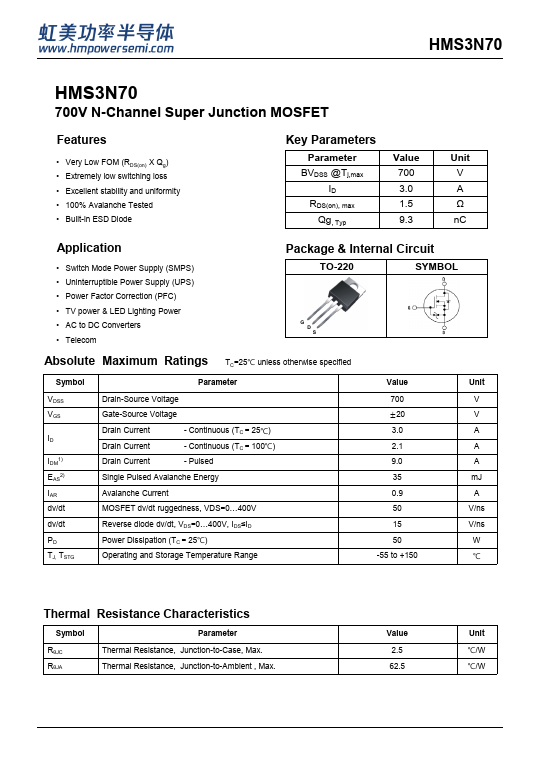

HMS3N70 Datasheet Preview — Preview of HMS3N70 PDF

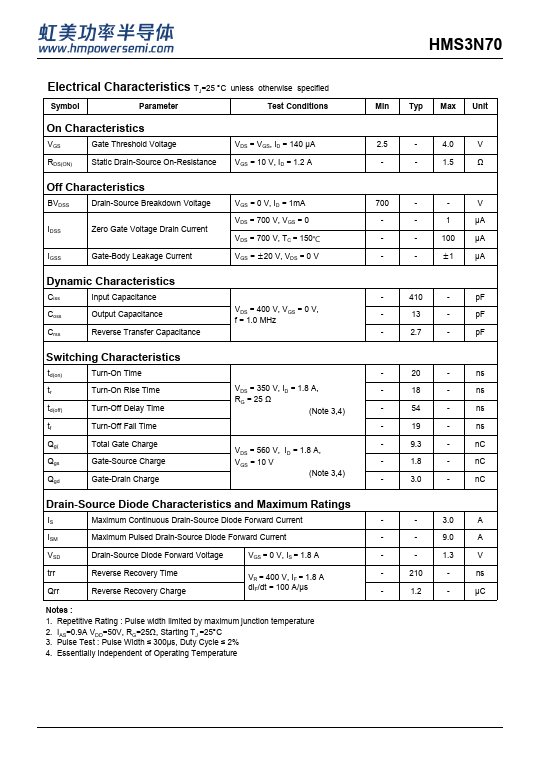

datasheet Preview Page 2

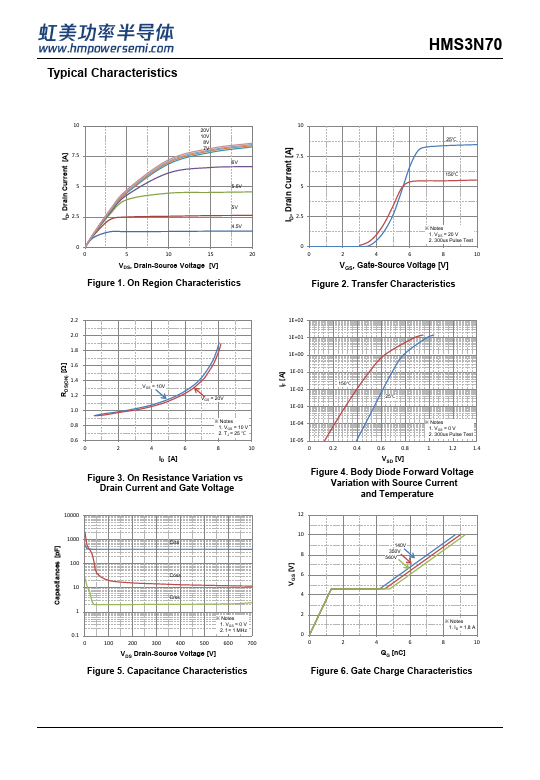

datasheet Preview Page 3

Datasheet Details

Part number	HMS3N70
Manufacturer	H&M Semiconductor
File Size	357.91 KB
Description	700V N-Channel Super Junction MOSFET
Datasheet	HMS3N70-HMSemiconductor.pdf

HMS3N70 Product details

Features

Very Low FOM (RDS(on) X Qg).
Extremely low switching loss.
Excellent stability and uniformity.
100% Avalanche Tested.
Built-in ESD Diode Key Parameters Parameter BVDSS @Tj,max ID RDS(on), max Qg, Typ Value 700 3.0 1.5 9.3 Unit V A Ω nC.
