HMS320N04D N-Channel Super Trench II Power MOSFET

The series of devices uses Super Trench II technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency.

HMS320N04D Features

* VDS =40V,ID =320A RDS(ON)=0.5mΩ , typical @ VGS=10V ID=1A

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 175 °C operating temperature

* Pb-free lead plating 100% UIS TESTED! 100% ∆Vds TESTED! TO-220 TO-263 Schematic Diagram Package Marking

HMS320N04-HMSemiconductor.pdf

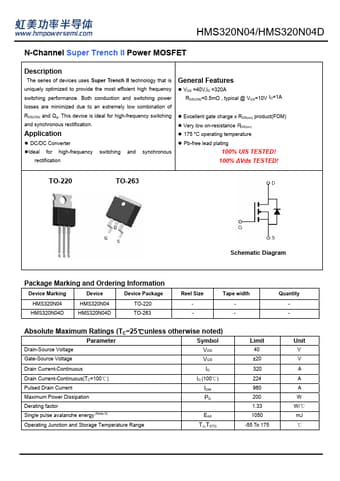

HMS320N04D Datasheet Preview — This datasheet PDF includes multiple part numbers: HMS320N04D, HMS320N04. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HMS320N04D, HMS320N04

Manufacturer:

H&M Semiconductor

File Size:

772.54 KB

Description:

N-channel super trench ii power mosfet.

Note:

This datasheet PDF includes multiple part numbers: HMS320N04D, HMS320N04.
Please refer to the document for exact specifications by model.
