HMS320N04 N-Channel Super Trench II Power MOSFET

HMS320N04 Description

HMS320N04/HMS320N04D N-Channel Super Trench II Power MOSFET .
The series of devices uses Super Trench II technology that is uniquely optimized to provide the most efficient high frequency switching performance.

HMS320N04 Features

* VDS =40V,ID =320A RDS(ON)=0.5mΩ , typical @ VGS=10V ID=1A
* Excellent gate charge x RDS(on) product(FOM)
* Very low on-resistance RDS(on)
* 175 °C operating temperature
* Pb-free lead plating 100% UIS TESTED! 100% ∆Vds TESTED! TO-220 TO-263 Schematic Diagram Package Marking

📥 Download Datasheet

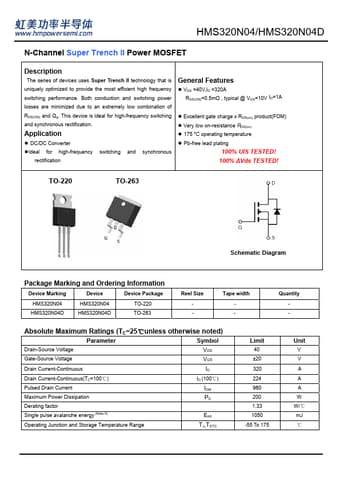

Preview of HMS320N04 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HMS320N04
Manufacturer
H&M Semiconductor
File Size
772.54 KB
Datasheet
HMS320N04-HMSemiconductor.pdf
Description
N-Channel Super Trench II Power MOSFET
