HMS320N04LL Datasheet - H&M Semiconductor

HMS320N04LL N-Channel Super Trench Power MOSFET

The HMS320N04LL uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switchin.

HMS320N04LL Features

* VDS =40V,ID =320A RDS(ON)=0.5mΩ , typical @ VGS=10V

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 175 °C operating temperature

* Pb-free lead plating 100% UIS TESTED! 100% ∆Vds TESTED! TOLL Schematic Diagram Package Marking and Ordering In

HMS320N04LL-HMSemiconductor.pdf

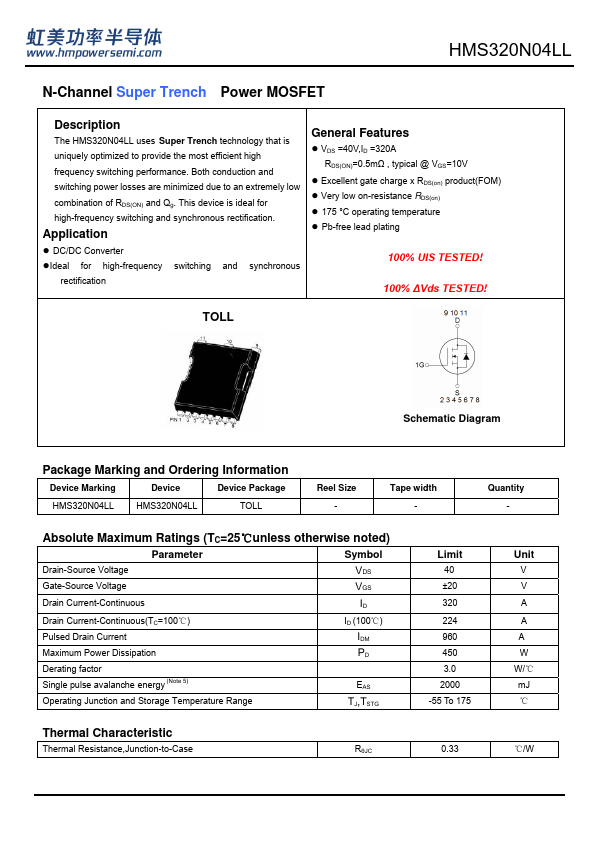

Preview of HMS320N04LL PDF

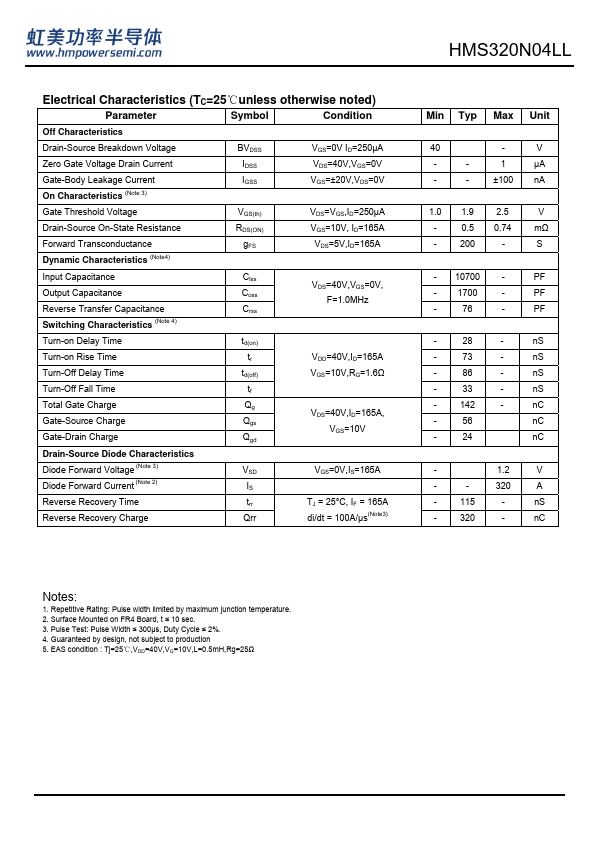

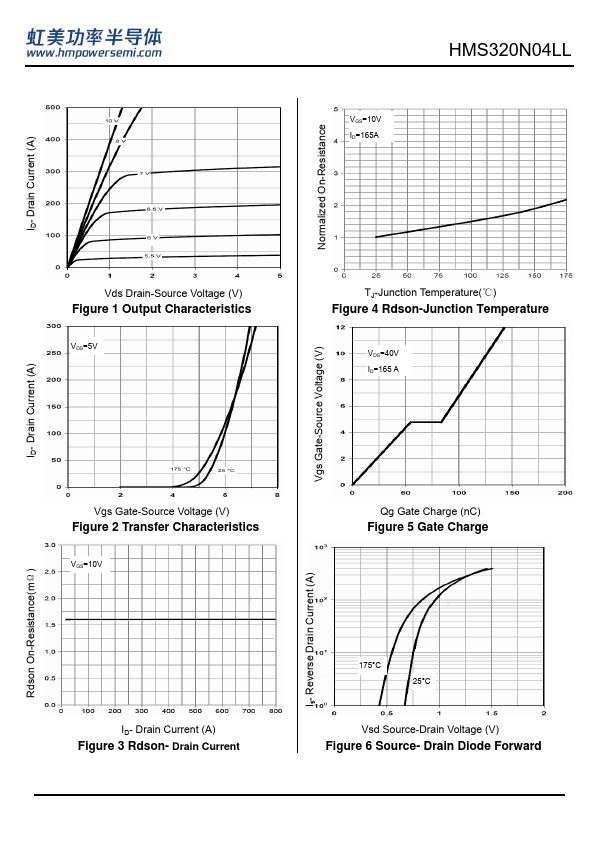

HMS320N04LL Datasheet Preview Page 2 HMS320N04LL Datasheet Preview Page 3

Datasheet Details

Part number:

HMS320N04LL

Manufacturer:

H&M Semiconductor

File Size:

509.56 KB

Description:

N-channel super trench power mosfet.
