HMS310N85LL N-Channel Super Trench Power MOSFET

HMS310N85LL Description

HMS310N85LL N-Channel Super Trench Power MOSFET .
The HMS310N85LL uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance.

HMS310N85LL Features

* VDS =85V,ID =310A RDS(ON)=1.6mΩ , typical @ VGS=10V
* Excellent gate charge x RDS(on) product(FOM)
* Very low on-resistance RDS(on)
* 175 °C operating temperature
* Pb-free lead plating 100% UIS TESTED! 100% ∆Vds TESTED! TOLL Schematic Diagram Package Marking and Ordering In

📥 Download Datasheet

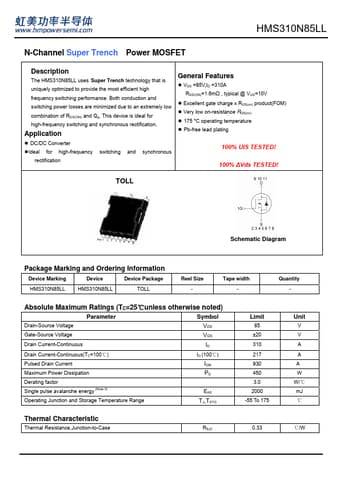

Preview of HMS310N85LL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HMS310N85LL
Manufacturer
H&M Semiconductor
File Size
455.22 KB
Datasheet
HMS310N85LL-HMSemiconductor.pdf
Description
N-Channel Super Trench Power MOSFET
