HM2800D N-Channel Enhancement Mode Power MOSFET

HM2800D Description

HM2800D N-Channel Enhancement Mode Power MOSFET .
The HM2800D uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.

HM2800D Features

* VDS = 20V,ID = 5.0A RDS(ON) < 40mΩ @ VGS=2.5V RDS(ON) < 33mΩ @ VGS=4.5V
* High power and current handing capability
* Lead free product is acquired

📥 Download Datasheet

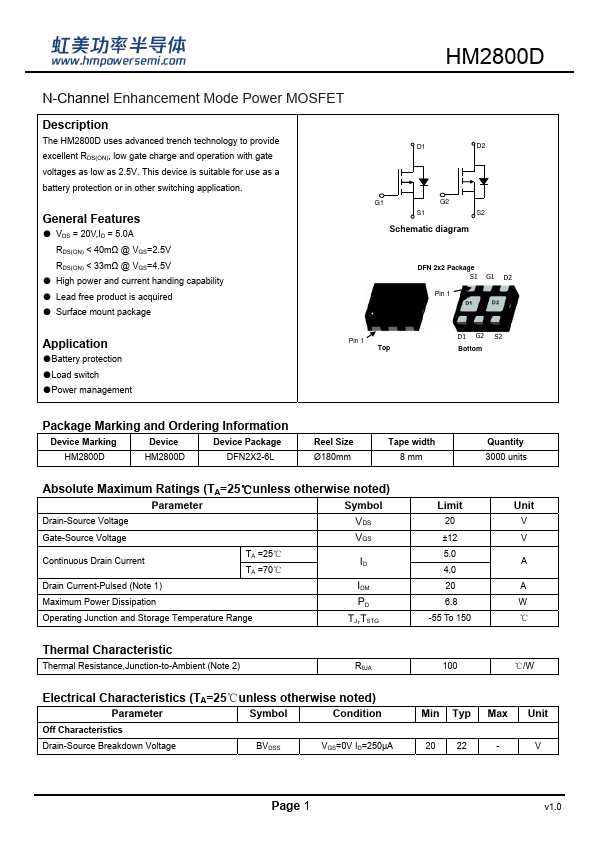

Preview of HM2800D PDF

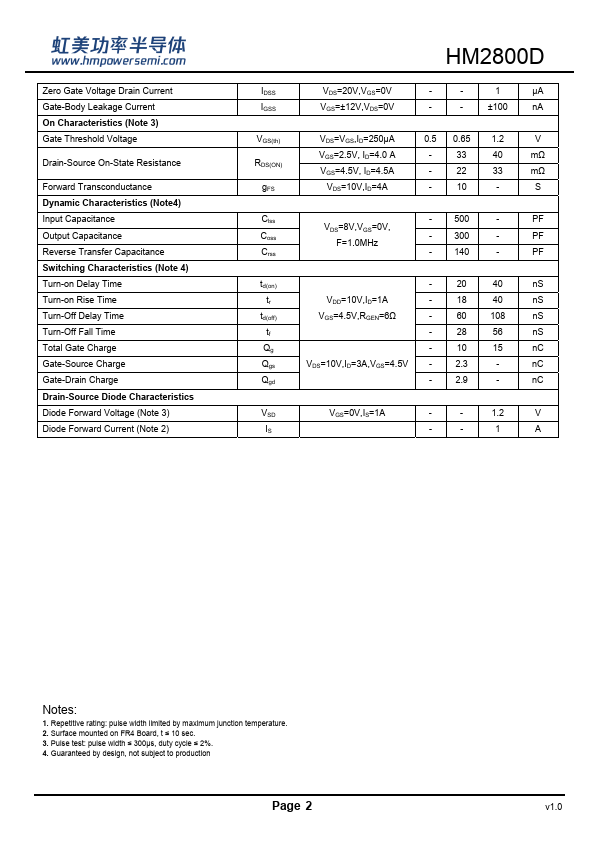

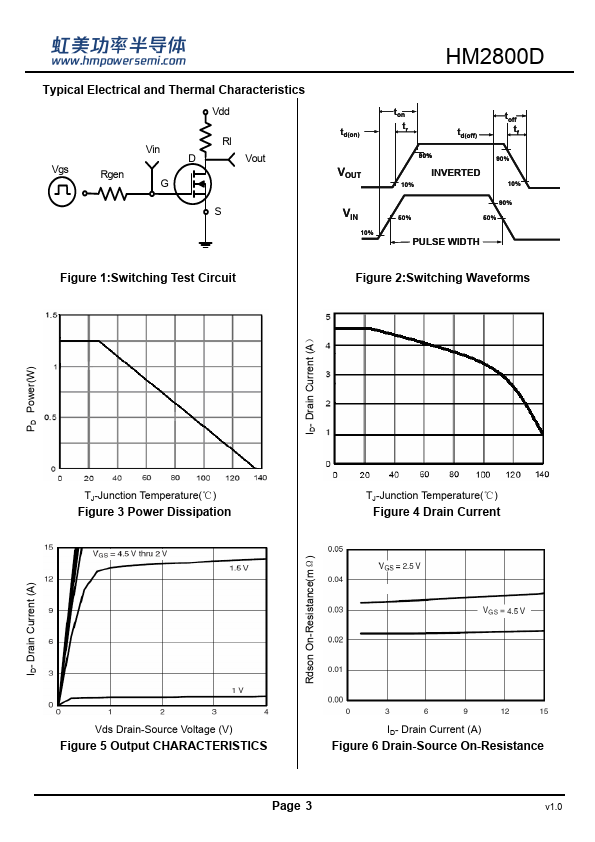

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM2800D
Manufacturer
H&M Semiconductor
File Size
653.56 KB
Datasheet
HM2800D-HMSemiconductor.pdf
Description
N-Channel Enhancement Mode Power MOSFET
