HM25N08D - N-Channel Enhancement Mode Power MOSFET

H&M Semiconductor

📥 Download Datasheet

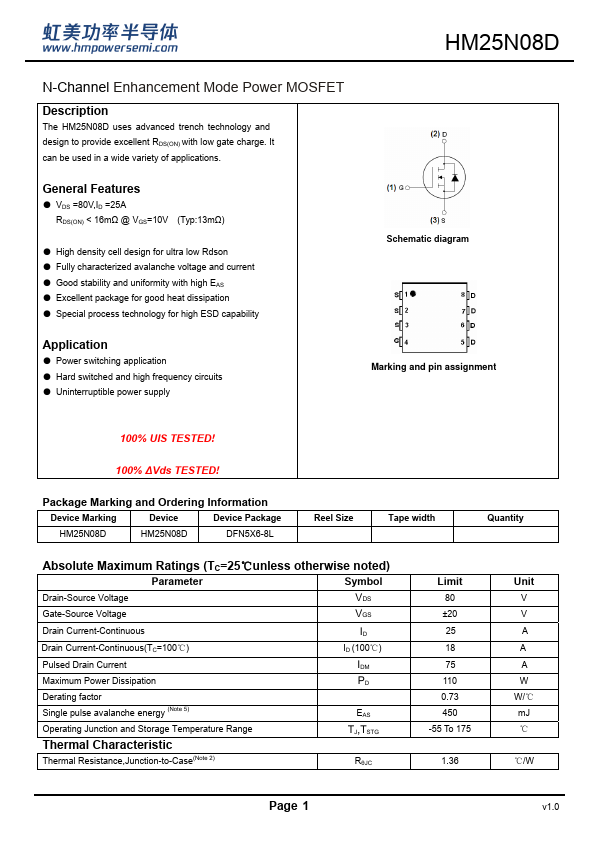

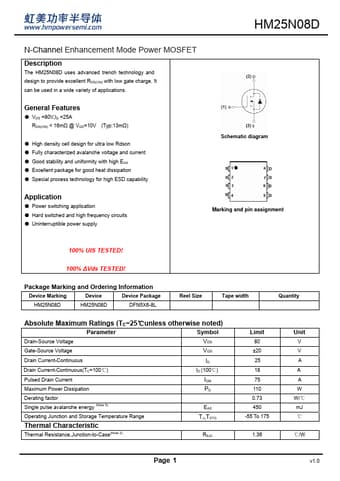

HM25N08D Datasheet Preview — Preview of HM25N08D PDF

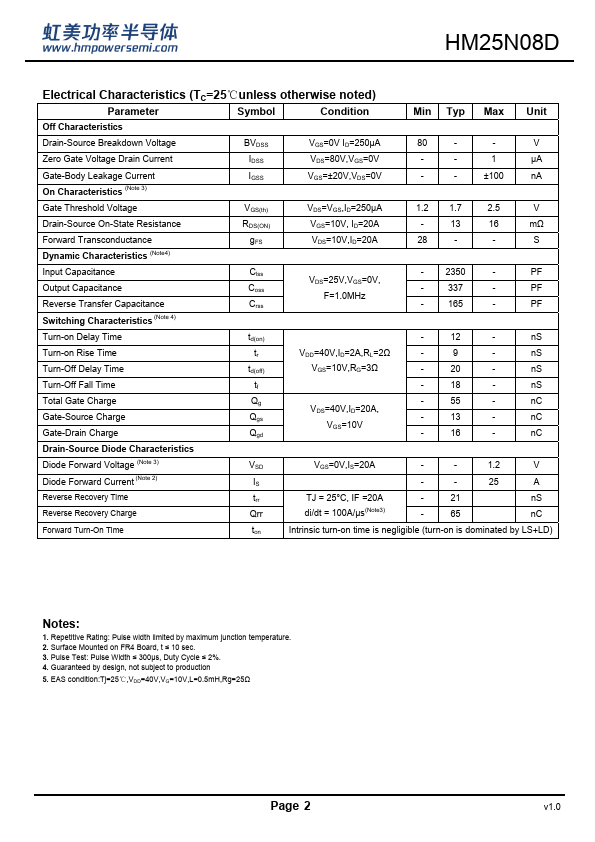

datasheet Preview Page 2

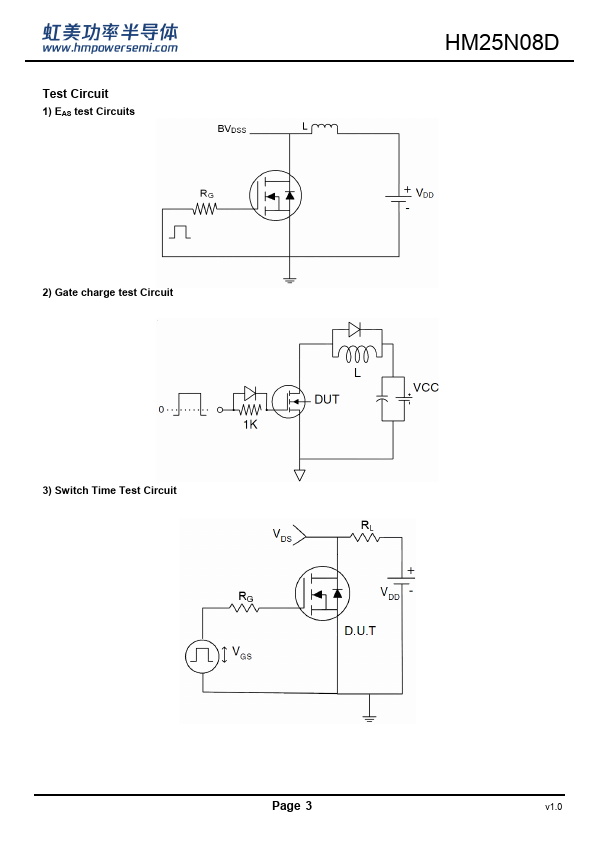

datasheet Preview Page 3

Datasheet Details

Part number	HM25N08D
Manufacturer	H&M Semiconductor
File Size	513.02 KB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	HM25N08D-HMSemiconductor.pdf

HM25N08D Product details

Description

The HM25N08D uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

VDS =80V,ID =25A RDS(ON) < 16mΩ @ VGS=10V (Typ:13mΩ).
High density cell design for ultra low Rdson.
Fully characterized avalanche voltage and current.
Good stability and uniformity with high EAS.
Excellent package for good heat dissipation.
Special process technology for high ESD capability.
