HM250N03GA N-Channel Enhancement Mode Power MOSFET

H&M Semiconductor

HM250N03GA Description

HM250N03GA N-Channel Enhancement Mode Power MOSFET .
The HM250N03GA uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

HM250N03GA Features

* VDS =30V ,ID =250A RDS(ON) = 0.9mΩ (Typ) @ VGS=10V RDS(ON) = 1.8mΩ (Typ) @ VGS=4.5V Schematic diagram
* High density cell design for ultra low Rdson
* Fully characterized avalanche voltage and current
* Good stability and uniformity with high EAS
* Excellent package for good

📥 Download Datasheet

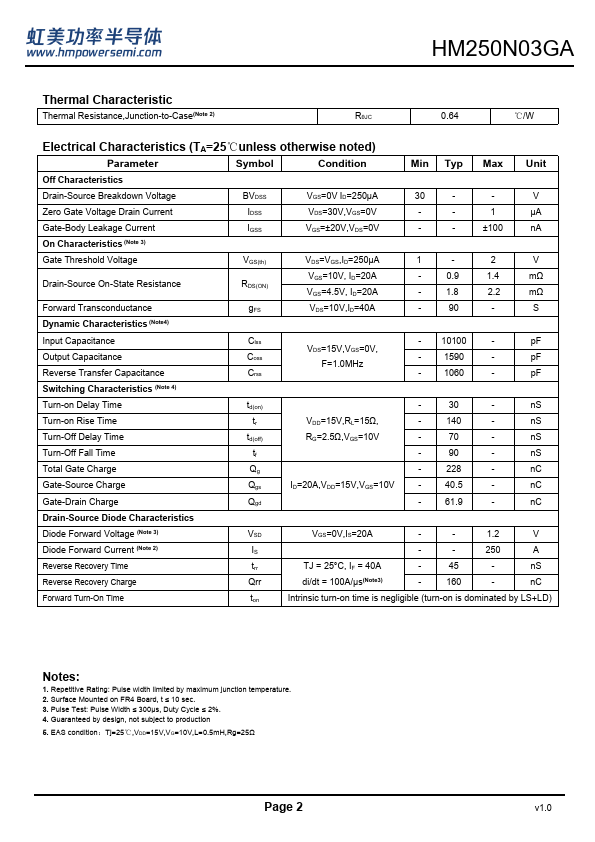

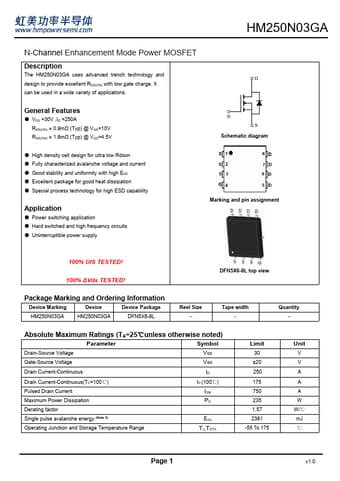

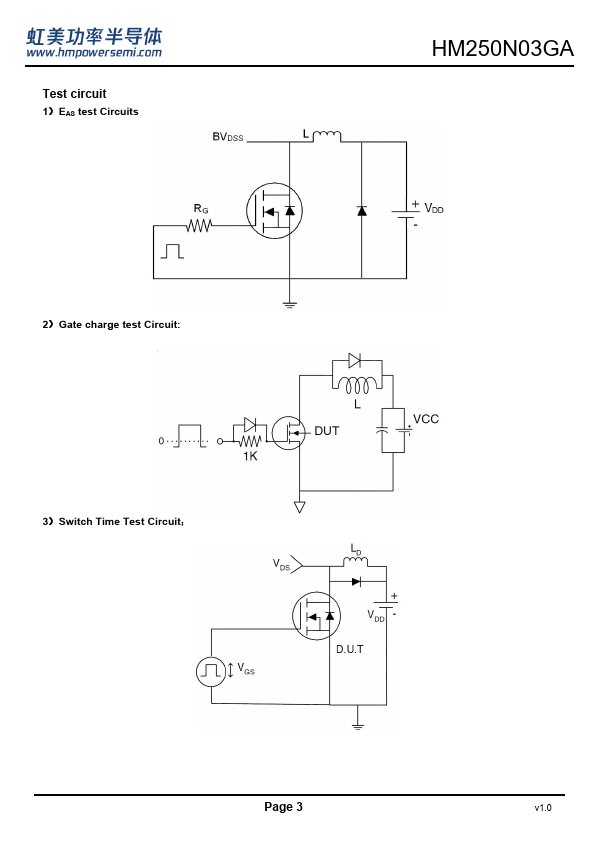

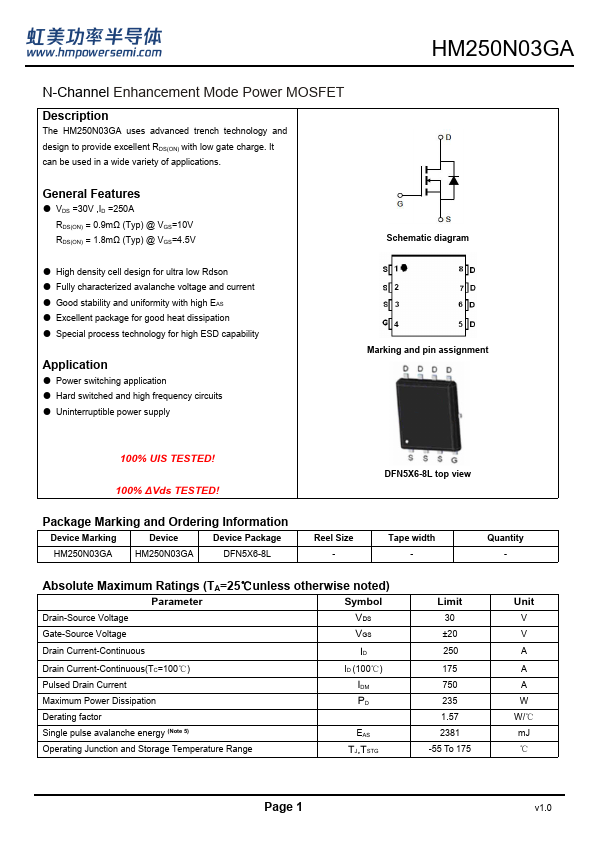

HM250N03GA Datasheet Preview — Preview of HM250N03GA PDF

Datasheet Details

Part number: HM250N03GA
Manufacturer: H&M Semiconductor
File Size: 1.02 MB
Datasheet: HM250N03GA-HMSemiconductor.pdf
Description: N-Channel Enhancement Mode Power MOSFET
