HM15N50F, HM15N50 Datasheet - H&M Semiconductor

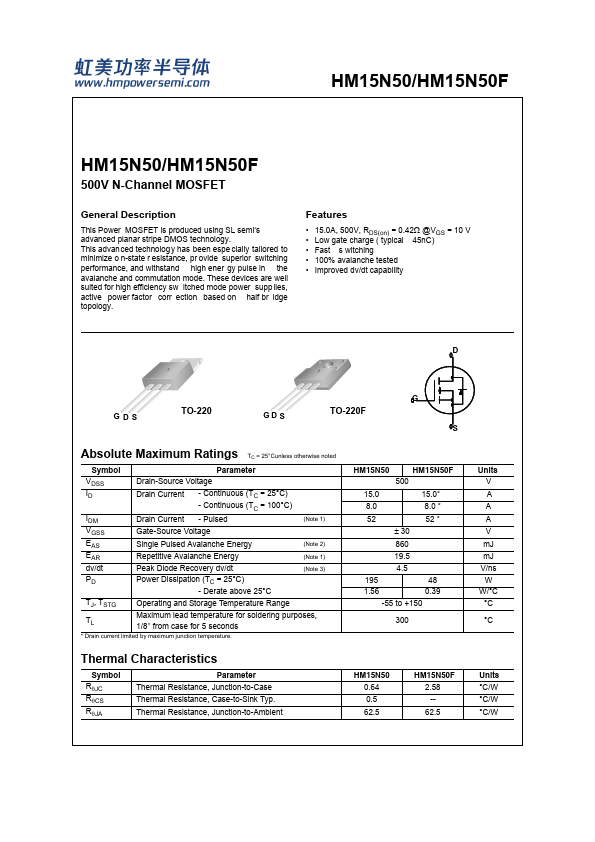

HM15N50F 500V N-Channel MOSFET

This Power MOSFET is produced using SL semi‘s advanced planar stripe DMOS technology. This advanced technology has been espe cially tailored to minimize o n-state r esistance, pr ovide superior switching performance, and withstand high ener gy pulse in the avalanche and commutation mode. These devic.

HM15N50F Features

* 15.0A, 500V, RDS(on) = 0.42Ω @VGS = 10 V

* Low gate charge ( typical 45nC)

* Fast s witching

* 100% avalanche tested

* Improved dv/dt capability {D GDS TO-220 GD S TO-220F

* ◀▲ {G

* {S Absolute Maximum Ratings TC = 25°Cunless otherw

HM15N50-HMSemiconductor.pdf

HM15N50F Datasheet Preview — This datasheet PDF includes multiple part numbers: HM15N50F, HM15N50. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HM15N50F, HM15N50

Manufacturer:

H&M Semiconductor

File Size:

404.65 KB

Description:

500v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: HM15N50F, HM15N50.
Please refer to the document for exact specifications by model.
