HM15N120AT - IGBT

Name: HM15N120AT
SKU: HM15N120AT-1587037

H&M Semiconductor

📥 Download Datasheet

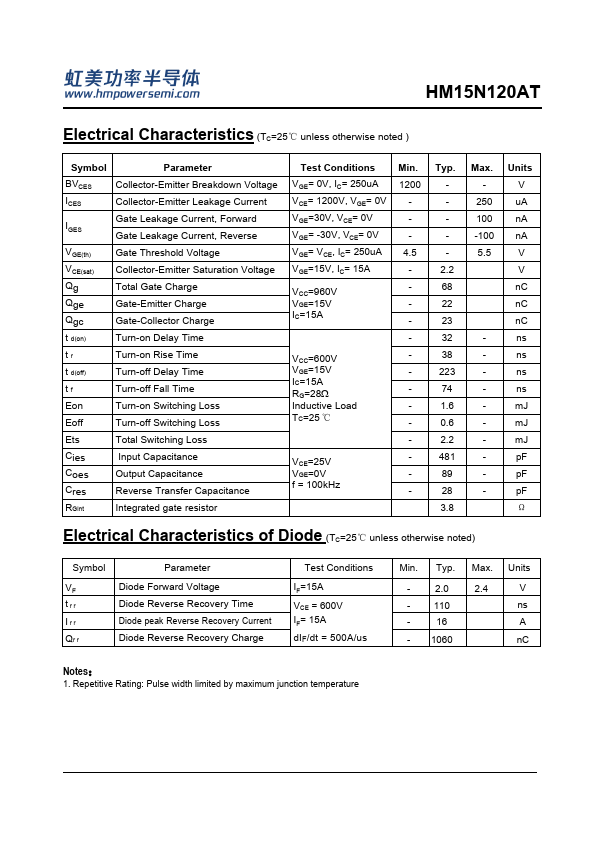

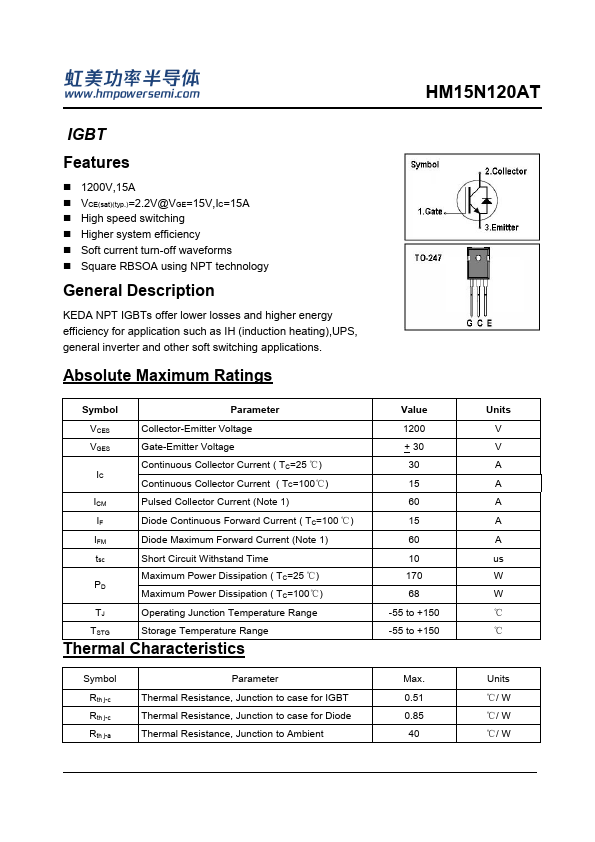

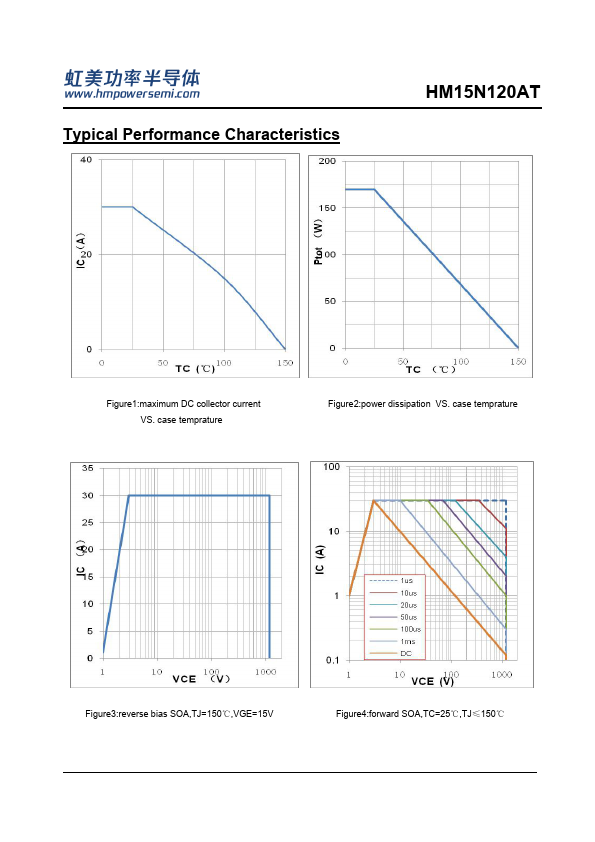

HM15N120AT Datasheet Preview — Preview of HM15N120AT PDF

Datasheet Details

Part number	HM15N120AT
Manufacturer	H&M Semiconductor
File Size	0.99 MB
Description	IGBT
Datasheet	HM15N120AT-HMSemiconductor.pdf

HM15N120AT Product details

Description

KEDA NPT IGBTs offer lower losses and higher energy efficiency for application such as IH (induction heating),UPS, general inverter and other soft switching applications.

Features

1200V,15A.
VCE(sat)(typ. )=2.2V@VGE=15V,IC=15A.
High speed switching.
Higher system efficiency.
Soft current turn-off waveforms.
Square RBSOA using NPT technology General.
