HM15N25F - N-channel Enhanced VDMOSFET

H&M Semiconductor

📥 Download Datasheet

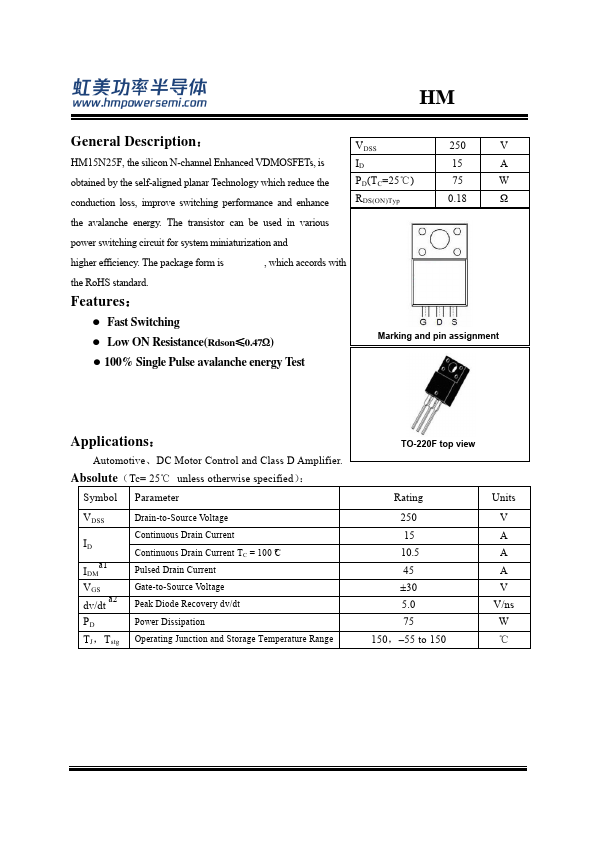

HM15N25F Datasheet Preview — Preview of HM15N25F PDF

Datasheet Details

Part number	HM15N25F
Manufacturer	H&M Semiconductor
File Size	725.24 KB
Description	N-channel Enhanced VDMOSFET
Datasheet	HM15N25F-HMSemiconductor.pdf

HM15N25F Product details

Description

VDSS 250 V HM15N25F, the silicon N-channel Enhanced VDMOSFETs, is ID 15 A obtained by the self-aligned planar Technology which reduce the PD(TC=25℃) 75 W conduction loss, improve switching performance and enhance RDS(ON)Typ 0.18 Ω the avalanche energy.The transistor can be used in various power switching circuit for system miniaturization and higher efficiency.The package form is 72), which accords with the RoHS standard.

Features

Fast Switching.
Low ON Resistance(Rdson≤0.47Ω) Marking and pin assignment.
100% Single Pulse avalanche energy Test.
