G5132 - 1.2A Boost Converter

This page provides the datasheet information for the G5132, a member of the G5132-GlobalMixed 1.2A Boost Converter family.

Datasheet Summary

Description

The G5132 is a compact, high efficiency, switch embedded, low voltage step-up converter.

Features

  • 90% Efficiency.
  • 0.9V Low Start-up Input Voltage.
  • Deliver 3.3V at 100mA from Single Cell Alkaline.
  • 600kHz Switching Frequency.
  • 17µA No Switching Quiescent Current.
  • Typical 40µA No Load Input Current at 3.3V Output.
  • Internal 0.3Ω n-Channel MOSFET.
  • Optional External n-Channel MOSFET Capability.
  • Small SOT-23-6 and TSOT-23-6 Package.

📥 Download Datasheet

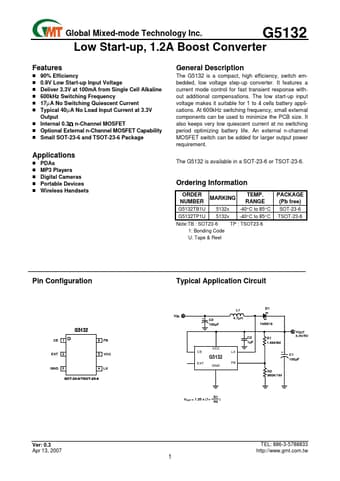

Datasheet preview – G5132
