G510VS, G510DS GLASS PASSIVATED RECTIFIERS

Jingdao

G510VS Description

Jingdao Microelectronics co.LTD GLASS PASSIVATED RECTIFIERS Reverse Voltage - 100 to 1000 V Forward Current - 5.0 A .

G510VS Features

* High current capability
* Low forward voltage drop
* Low power loss, high efficiency
* High surge capability
* High temperature soldering guaranteed
* Mounting position: any ① ③ G501 THRU G510 ② ①② ④ ③④ MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTI

📥 Download Datasheet

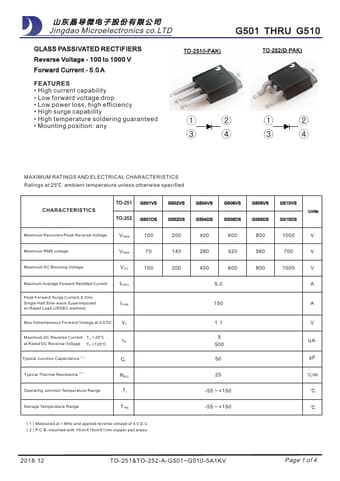

G510VS Datasheet Preview — This datasheet PDF includes multiple part numbers: G510VS, G510DS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: G510VS, G510DS
Manufacturer: Jingdao
File Size: 262.14 KB
Datasheet: G510DS-Jingdao.pdf
Description: GLASS PASSIVATED RECTIFIERS
Note: This datasheet PDF includes multiple part numbers: G510VS, G510DS.
Please refer to the document for exact specifications by model.
