G5103 - Micro-power Step-Up DC/DC Converters

This page provides the datasheet information for the G5103, a member of the G5103-GlobalMixed Micro-power Step-Up DC/DC Converters family.

Datasheet Summary

Description

The G5103 boost converter is designed for small/ medium size LCD panel of high bias voltage.

Due to a typical 20µA quiescent current and 2.5V~ 6.5V supply voltage range, it is suitable for battery powered portable applications.

Such as PDAs and Handheld Computers.

Features

  • Configurable Output Voltage Up to 16V.
  • 20µA Quiescent Current.

📥 Download Datasheet

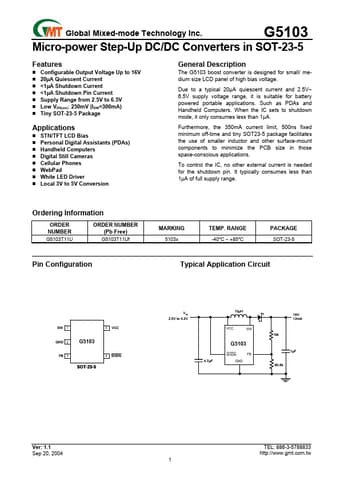

Datasheet preview – G5103

Datasheet Details

Part number G5103
Manufacturer Global Mixed-mode Technology
File Size 280.80 KB
Description Micro-power Step-Up DC/DC Converters
Datasheet download datasheet G5103 Datasheet
Additional preview pages of the G5103 datasheet.

📁 Similar Datasheet

  • G510DS - GLASS PASSIVATED RECTIFIERS (Jingdao)
  • G510VS - GLASS PASSIVATED RECTIFIERS (Jingdao)
  • G5137P - DIGITAL PWM (Global Semiconductor)
  • G5138P - DIGITAL PWM (Global Semiconductor)
  • G5138PA - Digital Green-Mode QR Primary-Side PWM Power Switch (Global Semiconductor)
  • G5138PE - Digital Green-Mode QR Primary-Side PWM Power Switch (Global Semiconductor)
  • G5138PK - Digital Green-Mode QR Primary-Side PWM Power Switch (Global Semiconductor)
  • G5138PT - Digital Green-Mode QR Primary-Side PWM Power Switch (Global Semiconductor)
  • G5162 - DIGITAL-IC (Global Semiconductor)
  • G517 - Transformer (TAMURA)
Other Datasheets by Global Mixed-mode Technology
  • G5108 - Low-Noise Step-up DC-DC Converter
  • G5110 - 600k/1.2MHz TFT-LCD Step-Up DC-DC Converter
  • G5111 - Micro-power Step-Up DC/DC Converters
  • G5113 - Micro-power Step-Up DC/DC Converters
  • G5120 - 600k/1.2MHz TFT-LCD Step-Up DC-DC Converter
  • G5121 - Fixed Frequency White LED Step-Up Converter
  • G5125 - Micro-Power Boost DC/DC Converter
  • G5125T11U - Micro-Power Boost DC/DC Converter

Full PDF Text Transcription

Click to expand full text
Global Mixed-mode Technology Inc. G5103 Micro-power Step-Up DC/DC Converters in SOT-23-5 Features „ Configurable Output Voltage Up to 16V „ 20µA Quiescent Current „ <1µA Shutdown Current „ <1µA Shutdown Pin Current „ Supply Range from 2.5V to 6.5V „ Low VDS(on): 250mV (ISW=300mA) „ Tiny SOT-23-5 Package Applications „ STN/TFT LCD Bias „ Personal Digital Assistants (PDAs) „ Handheld Computers „ Digital Still Cameras „ Cellular Phones „ WebPad „ White LED Driver „ Local 3V to 5V Conversion General Description The G5103 boost converter is designed for small/ medium size LCD panel of high bias voltage. Due to a typical 20µA quiescent current and 2.5V~ 6.5V supply voltage range, it is suitable for battery powered portable applications. Such as PDAs and Handheld Computers.
