G5130, G5130_GlobalMixed PSM Step-up DC/DC Converter

G5130 Description

Global Mixed-mode Technology Inc.G5130/G5131 PSM Step-up DC/DC Converter .
The G5130/G5131 boost converter is designed for use of main power source on portable equipments.

G5130 Features

* 1~4 Cell Alkaline Battery Operating Range
* Output Voltage Range: 2.5V~5.0V in 0.1V In- crements
* Minimum External Component (L, D, C)
* 100kHz Max. Oscillation Frequency
* 75% Duty Ratio
* Up to 80% Efficiency
* ±2% High Output Voltage Accu

G5130 Applications

* Power Source for Portable Equipments
* Handheld Computers, Palmtops
* Digital Still Cameras, Camcorders
* Cellular Phones, Pagers

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: G5130, G5130_GlobalMixed. Please refer to the document for exact specifications by model.

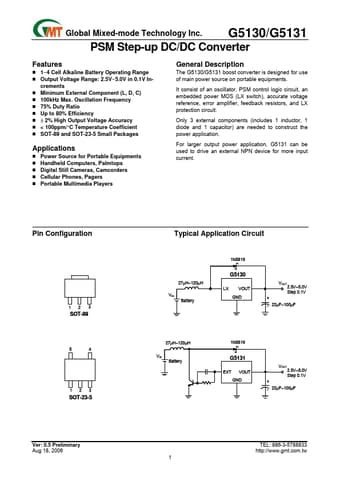

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
G5130, G5130_GlobalMixed
Manufacturer
Global Mixed-mode Technology
File Size
605.81 KB
Datasheet
G5130_GlobalMixed-modeTechnology.pdf
Description
PSM Step-up DC/DC Converter
Note
This datasheet PDF includes multiple part numbers: G5130, G5130_GlobalMixed.
Please refer to the document for exact specifications by model.
