FP6600Q USB Dedicated Charging Port Controller

FP6600Q Description

FP6600Q USB Dedicated Charging Port Controller for Fast Charging Protocol and QC 2.0/3.0 .
The FP6600Q is a fast charge protocol controller for HiSilicon Fast Charging Protocol (FCP) and Qualcomm® Quick ChargeTM 2.

FP6600Q Features

* Support HiSilicon Fast Charging Protocol (FCP) for Output Voltage and Current Communication
* Support Qualcomm® Quick ChargeTM 2.0/3.0
* Class A : 3.6V up to 12V Output Voltage
* Class B : 3.6V up to 20V Output Voltage
* Automatic Selection FCP and QC 2.0/3.0 Protocols
* Su

FP6600Q Applications

* Wall-Adapter, Smart Phones, Tablets, Notebooks
* Mobile / Tablet Power Bank
* Car Charger
* USB Power Output Ports Ordering Information FP6600Q
* Package Type SO: SOP-8 Figure 1. Pin Assignment of FP6600Q FP6600Q-Preliminary 0.1-AUG-2016 1 Typical Application Circuit VO

📥 Download Datasheet

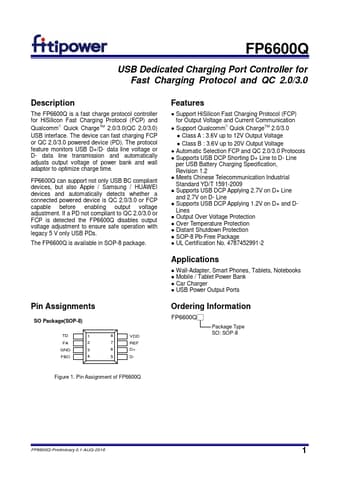

Preview of FP6600Q PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FP6600Q
Manufacturer
Fitipower
File Size
395.03 KB
Datasheet
FP6600Q-Fitipower.pdf
Description
USB Dedicated Charging Port Controller
