FP6601AA Dual USB Type-A HVDCP Controller

FP6601AA Description

FP6601AA Dual USB Type-A HVDCP Controller With Plug In/Out Auto Detection .
The FP6601AA is a dual ports USB Type-A fast charging protocol controller with plug in/out auto detection for HiSilicon Fast Charging Protocol (FCP) a.

FP6601AA Features

* VDD Supply Voltage: 3.2V to 6.8V
* Supports HiSilicon Fast Charging Protocol (FCP)
* Supports Qualcomm® Quick ChargeTM 2.0/3.0 Class A
* Automatically Selects FCP and QC2.0/3.0 Protocols
* Supports USB DCP Shorting D+ Line to D
* Line per USB Battery Charging Specificati

FP6601AA Applications

* Wall-Adapter
* Car Charger
* Power Strip
* USB Power Output Port Pin Assignments P6 Package CPC-20L DP2 1 LED_HV 2 LED 3 VBUS 4 DP1 5 DN1 6 SU1 7 SEN1 8 FLAG1 9 GND 10 20 DN2 19 SU2 18 SEN2 17 FLAG2 16 ISP2 15 ISM 14 ISP1 13 MPC 12 FBO 11 VD

📥 Download Datasheet

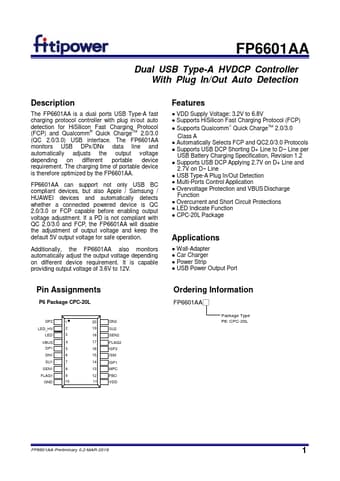

Preview of FP6601AA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FP6601AA
Manufacturer
Fitipower
File Size
340.56 KB
Datasheet
FP6601AA-Fitipower.pdf
Description
Dual USB Type-A HVDCP Controller
