FP6101 - 2A Buck Switching Regulator

Feeling Technology

📥 Download Datasheet

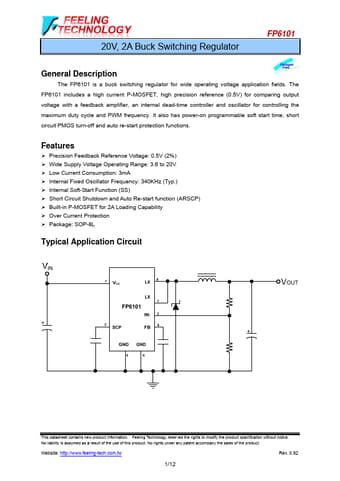

FP6101 Datasheet Preview — Preview of FP6101 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FP6101
Manufacturer	Feeling Technology
File Size	429.55 KB
Description	2A Buck Switching Regulator
Datasheet	FP6101-FeelingTechnology.pdf

FP6101 Product details

Description

The FP6101 is a buck switching regulator for wide operating voltage application fields.

Features

Precision Feedback Reference Voltage: 0.5V (2%) Wide Supply Voltage Operating Range: 3.6 to 20V Low Current Consumption: 3mA Internal Fixed Oscillator Frequency: 340KHz (Typ. ) Internal Soft-Start Function (SS) Short Circuit Shutdown and Auto Re-start function (ARSCP) Built-in P-MOSFET for 2A Loading Capability Over Current Protection Package: SOP-8L Typical.
