NDS9936 - Dual N-Channel MOSFET

General Description

These N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology.

This very high density process is especially tailored to minimize on-state resistance and provide superior switching performance.

Key Features

  • 5A, 30V. RDS(ON) = 0.05Ω @ VGS = 10V. High density cell design for extremely low RDS(ON). High power and current handling capability in a widely used surface mount package. Dual MOSFET in surface mount package. ________________________________________________________________________________ 5 4 3 2 1 6 7 8 Absolute Maximum Ratings T A = 25°C unless otherwise noted Symbol VDSS VGSS ID Parameter Drain-Source Voltage Gate-Source Voltage Drain Current - Continuous @ TA = 25°C - Continuous @ TA.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NDS9948 60V Dual P-Channel MOSFET ON Semiconductor
NDS9948-NL Dual P-Channel MOSFET VBsemi
NDS9959-NL Dual N-Channel MOSFET VBsemi
NDS9405 single P-Channel MOSFET ETC
NDS9407 P-Channel MOSFET ON Semiconductor

Other Datasheets by Fairchild (onsemi)

Part Number Description
NDS9933A Dual P-Channel MOSFET
NDS9925A Dual N-Channel MOSFET
NDS9945 Dual N-Channel MOSFET
NDS9947 Dual P-Channel MOSFET
NDS9948 Dual P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

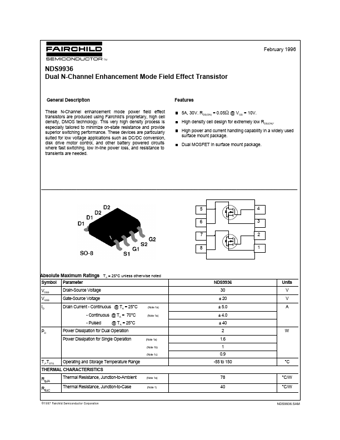

February 1996 NDS9936 Dual N-Channel Enhancement Mode Field Effect Transistor General Description These N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance and provide superior switching performance. These devices are particularly suited for low voltage applications such as DC/DC conversion, disk drive motor control, and other battery powered circuits where fast switching, low in-line power loss, and resistance to transients are needed. Features 5A, 30V. RDS(ON) = 0.05Ω @ VGS = 10V. High density cell design for extremely low RDS(ON). High power and current handling capability in a widely used surface mount package.
