RC4157 (RC4156 / RC4157) High Performance Quad Operational Amplifiers

RC4157 Description

www.fairchildsemi.com RC4156/RC4157 High Performance Quad Operational Amplifiers .
The RC4156 and RC4157 are monolithic integrated circuits, consisting of four independent high performance operational amplifiers constructed with an ad.

RC4157 Features

* Unity gain bandwidth for RC4156
* 3.5 MHz Unity gain bandwidth for RC4157
* 19 MHz High slew rate for RC4156
* 1.6 V/µS High slew rate for RC4157
* 8.0V/µS
* Low noise voltage
* 1.4 µVRMS
* Indefinite shor

RC4157 Applications

* The RC4157 is a decompensated version of the RC4156 and is AC stable in gain configurations of -5 or greater. Block Diagram Output (A)
* Input (A) +Input (A) +Input (B)
* Input (B) Output (B) 65-3463-01 Pin Assignments Output (D)
* Input (D) +Input (D) +Input (C) Output (A)

📥 Download Datasheet

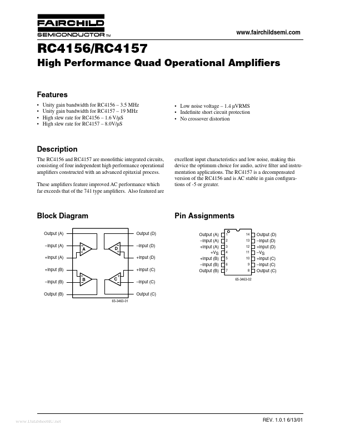

Preview of RC4157 PDF
