RC4190 Micropower Switching Regulator

RC4190 Description

( DataSheet : www.DataSheet4U.com ) www.fairchildsemi.com RC4190 Micropower Switching Regulator .
The RC4190 monolithic IC is a low power switch mode regulator intended for miniature power supply applications.

RC4190 Features

* High efficiency
* 85% typical Low quiescent current
* 215 mA Adjustable output
* 1.3V to 30V High switch current
* 200 mA Bandgap reference
* 1.31V
* Accurate osci

RC4190 Applications

* This DC-to-DC converter IC provides all of the active components needed to create supplies for micropower circuits (load power up to 400 mW, or up to 10W with an external power transistor). Contained internally are an oscillator, switch, reference, comparator, and logic, plus a discharged battery d

📥 Download Datasheet

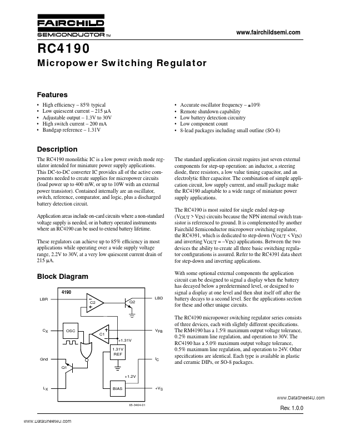

Preview of RC4190 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RC4190
Manufacturer
Fairchild
File Size
215.77 KB
Datasheet
RC4190_Fairchild.pdf
Description
Micropower Switching Regulator
