RC4193, RC4191 Micropower Switching Regulator

RC4193 Description

www.fairchildsemi.com RC4191/RC4192/RC4193 Micropower Switching Regulator .
The RC4191/4192/4193 series of monolithic ICs are low power switch mode regulators intended for miniature power supply applications.

RC4193 Features

* High efficiency
* 85% typical Low quiescent current
* 215 mA Adjustable output
* 1.3V to 30V High switch current
* 200 mA Bandgap reference
* 1.31V
* Accurate osci

RC4193 Applications

* These DC-to-DC converter ICs provide all of the active components needed to create supplies for micropower circuits. Contained internally are an oscillator, switch, reference, comparator, and logic, plus a discharged battery detection circuit. These regulators can achieve up to 85% efficiency in mos

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RC4193, RC4191. Please refer to the document for exact specifications by model.

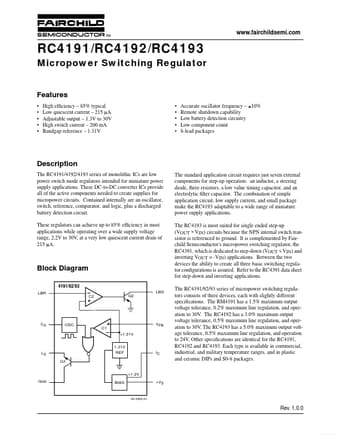

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RC4193, RC4191
Manufacturer
Fairchild Semiconductor
File Size
100.89 KB
Datasheet
RC4191-FairchildSemiconductor.pdf
Description
Micropower Switching Regulator
Note
This datasheet PDF includes multiple part numbers: RC4193, RC4191.
Please refer to the document for exact specifications by model.
