RC4194 Dual Tracking Voltage Regulators

RC4194 Description

www.fairchildsemi.com RC4194 Dual Tracking Voltage Regulators .
The RC/RM4194 are dual polarity tracking regulators designed to provide balanced or unbalanced positive and negative output voltages at currents to 20.

RC4194 Features

* Simultaneously adjustable outputs with one resistor to ±42V
* Load current
* ±200 mA with 0.04% load regulation
* Internal thermal shutdown at TJ = +175°C
* External balance for ±VOUT unbalancing

RC4194 Applications

* 0.01µF +VOUT To Additional Comparators 4.7µF
* +VS Comp+ +VOUT RA (Typically 15 RC4805s) +VS RM4194 -VS -VS R SET Comp- Gnd 71.5K R0 Bal RB 4805 R0 -VOUT -V OUT = -5V To Additional Comparators 4.7µF 0.01µF R O (k½ ) = 2.5 (-VOUT ) Adjust R O for -VOUT = -5V (12.5 kW ) R F1 = R F2 =

📥 Download Datasheet

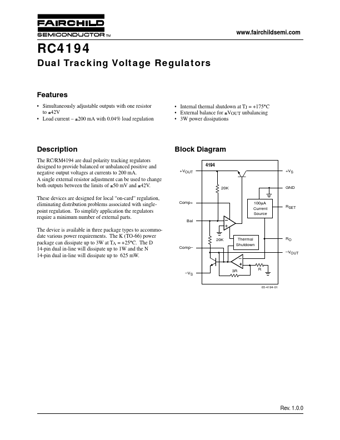

Preview of RC4194 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RC4194
Manufacturer
Fairchild Semiconductor
File Size
108.60 KB
Datasheet
RC4194_FairchildSemiconductor.pdf
Description
Dual Tracking Voltage Regulators
