ISL9V3040S3, ISL9V3040D3S - N-Channel Ignition IGBT

Fairchild Semiconductor

📥 Download Datasheet

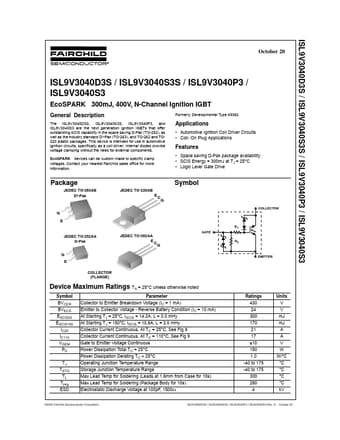

ISL9V3040S3 Datasheet Preview — This datasheet PDF includes multiple part numbers: ISL9V3040S3, ISL9V3040D3S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ISL9V3040S3, ISL9V3040D3S
Manufacturer	Fairchild Semiconductor
File Size	383.86 KB
Description	N-Channel Ignition IGBT
Datasheet	ISL9V3040D3S-FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: ISL9V3040S3, ISL9V3040D3S. Please refer to the document for exact specifications by model.

ISL9V3040S3 Product details

Description

The ISL9V3040D3S, ISL9V3040S3S, ISL9V3040P3, and ISL9V3040S3 are the next generation ignition IGBTs that offer outstanding SCIS capability in the space saving D-Pak (TO-252), as well as the industry standard D²-Pak (TO-263), and TO-262 and TO220 plastic packages. devices can be custom made to specific clam

Features

Space saving D-Pak package availability.
SCIS Energy = 300mJ at TJ = 25oC.
Logic Leve.
