ISL9V3040D3STV - N-Channel IGBT

Features

  • SCIS Energy = 300 mJ at TJ = 25°C.
  • Logic Level Gate Drive.
  • This Device is Pb.
  • Free and is RoHS Compliant.
  • AEC.
  • Q101 Qualified and PPAP Capable.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ISL9V3040D3S N-Channel Ignition IGBT Fairchild Semiconductor
ISL9V3040D3S N-CHANNEL IGNITION IGBT Unisonic Technologies
ISL9V3040P3 EcoSPARKTM 300mJ/ 400V/ N-Channel Ignition IGBT Fairchild Semiconductor
ISL9V3040S3 N-Channel Ignition IGBT Fairchild Semiconductor
ISL9V3040S3S N-Channel Ignition IGBT Fairchild Semiconductor

Other Datasheets by onsemi

Part Number Description
ISL9V3040D3ST-F085C N-Channel IGBT
ISL9V3040D3S N-Channel Ignition IGBT
ISL9V3040P3 N-Channel Ignition IGBT
ISL9V3040P3-F085C N-Channel IGBT
ISL9V3040S3 N-Channel Ignition IGBT

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

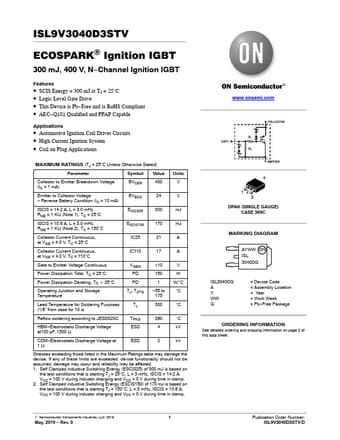

ISL9V3040D3STV ECOSPARK) Ignition IGBT 300 mJ, 400 V, N−Channel Ignition IGBT Features • SCIS Energy = 300 mJ at TJ = 25°C • Logic Level Gate Drive • This Device is Pb−Free and is RoHS Compliant • AEC−Q101 Qualified and PPAP Capable Applications • Automotive Ignition Coil Driver Circuits • High Current Ignition System • Coil on Plug Applications MAXIMUM RATINGS (TJ = 25°C Unless Otherwise Stated) Parameter Symbol Value Units Collector to Emitter Breakdown Voltage (IC = 1 mA) Emitter to Collector Voltage − Reverse Battery Condition (IC = 10 mA) ISCIS = 14.2 A, L = 3.0 mHz, RGE = 1 KW (Note 1), TC = 25°C ISCIS = 10.6 A, L = 3.0 mHz, RGE = 1 KW (Note 2), TC = 150°C Collector Current Continuous, at VGE = 4.0 V, TC = 25°C Collector Current Continuous, at VGE = 4.
