ISL9V3036P3, ISL9V3036D3S - N-Channel Ignition IGBT

Fairchild Semiconductor

📥 Download Datasheet

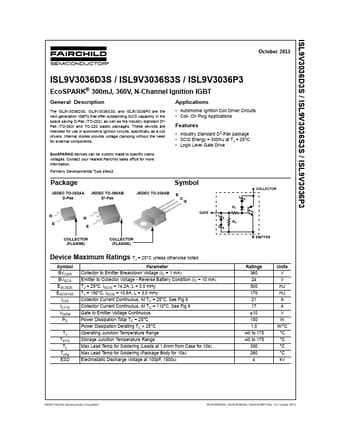

ISL9V3036P3 Datasheet Preview — This datasheet PDF includes multiple part numbers: ISL9V3036P3, ISL9V3036D3S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ISL9V3036P3, ISL9V3036D3S
Manufacturer	Fairchild Semiconductor
File Size	446.20 KB
Description	N-Channel Ignition IGBT
Datasheet	ISL9V3036D3S-FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: ISL9V3036P3, ISL9V3036D3S. Please refer to the document for exact specifications by model.

ISL9V3036P3 Product details

Description

The ISL9V3036D3S, ISL9V3036S3S, and ISL9V3036P3 are the next generation IGBTs that offer outstanding SCIS capability in the space saving D-Pak (TO-252), as well as the industry standard D²Pak (TO-263) and TO-220 plastic packages. Automotive Ignition Coil Driver Circuits Coil- On Plu

Features

Industry Standard D2-Pak package.
SCIS Energy = 300mJ at TJ = 25oC.
Logic Level Gate Drive EcoSPARK® devices can be custom made to specific clamp voltages. Contact your nearest Fairchild sales office for more information. Formerly Developmental Type 49442 Package JEDEC TO-252AA JEDEC TO-263AB D-Pak D².
