FAN73611_OP - Single-Channel High-Side Gate Drive IC

Fairchild Semiconductor

📥 Download Datasheet

FAN73611_OP Datasheet Preview — Preview of FAN73611_OP PDF

Datasheet Details

Part number	FAN73611_OP
Manufacturer	Fairchild Semiconductor
File Size	2.23 MB
Description	Single-Channel High-Side Gate Drive IC
Datasheet	FAN73611_OP-FairchildSemiconductor.pdf

FAN73611_OP Product details

Description

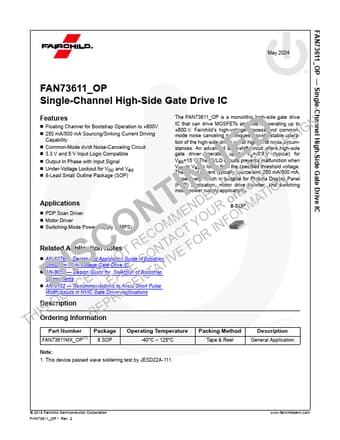

THIS D REP Ordering Information Part Number Package Operating Temperature Packing Method Description FAN73611MX_OP(1) 8 SOP -40°C ~ 125°C Tape & Reel General Application Note: 1. This device passed wave soldering test by JESD22A-111. © 2015 Fairchild Semiconductor Corporation FAN73611_OP Rev. Single-Channel High-Side Gate Drive IC PULSE GENERATOR Typical Application Diagrams 15V VIN RBOOT DBOOT FAN73611 1 VDD VB 8 R1 PWM

Features

Floating Channel for Bootstrap Operation to +600V IGN.
250 mA/500 mA Sourcing/Sinking Current Driving S Capability E.
Common-Mode dv/dt Noise-Canceling Circuit D D.
3.3 V and 5 V Input Logic Compatible W.
Output In Phase with Input Signal ENE.
Under-Voltage Lockout for VDD and VBS.
8-Lead Small Outline Package (SOP) INDEDUFoOnRsemAiTION.
