FAN7311B - LCD Backlight Inverter Driver

Fairchild Semiconductor

📥 Download Datasheet

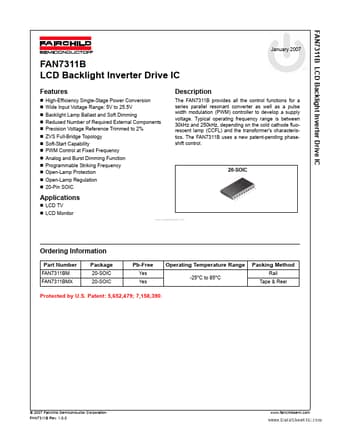

FAN7311B Datasheet Preview — Preview of FAN7311B PDF

Datasheet Details

Part number	FAN7311B
Manufacturer	Fairchild Semiconductor
File Size	408.41 KB
Description	LCD Backlight Inverter Driver
Datasheet	FAN7311B_FairchildSemiconductor.pdf

FAN7311B Product details

Description

The FAN7311B provides all the control functions for a series parallel resonant converter as well as a pulse width modulation (PWM) controller to develop a supply voltage. LCD TV LCD Monitor www.DataSheet4U.com Ordering Information Part Numbe

Features

High-Efficiency Single-Stage Power Conversion.
Wide Input Voltage Range: 5V to 25.5V.
Backlight Lamp Ballast and Soft Dimming.
Reduced Number of Required External Components.
Precision Voltage Reference Trimmed to 2%.
ZVS Full-Bridge Topology.
Soft-Start Capability.
PWM Control at Fixed Frequency.
Analog and Burst Dimming Function.
Programmable Striking Frequency.
Open-Lamp Protection.
Op.
